Abstract base class providing common serialization and visualization interface. More...

#include <interface.h>

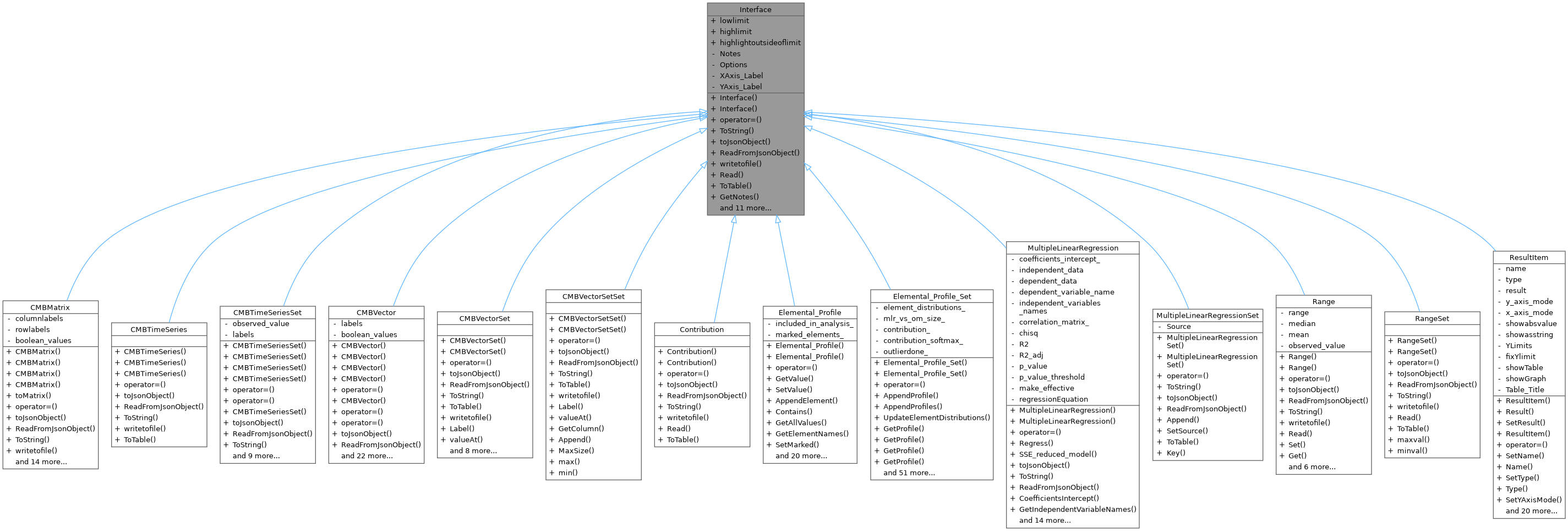

Inheritance diagram for Interface:

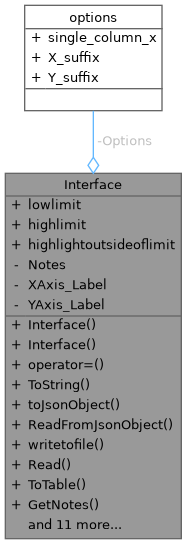

Collaboration diagram for Interface:

Public Member Functions
	Interface ()
	Default constructor.

	Interface (const Interface &intf)
	Copy constructor.

Interface &	operator= (const Interface &intf)
	Assignment operator.

virtual string	ToString () const
	Convert object to string representation.

virtual QJsonObject	toJsonObject () const
	Serialize object to JSON format.

virtual bool	ReadFromJsonObject (const QJsonObject &jsonobject)
	Deserialize object from JSON format.

virtual bool	writetofile (QFile *file)
	Write object data to a file.

virtual bool	Read (const QStringList &strlist)
	Parse object data from a string list.

virtual QTableWidget *	ToTable ()
	Create a Qt table widget representation of the data.

string	GetNotes () const
	Get the notes/annotations associated with this object.

void	SetNotes (const string &note)
	Set the notes for this object, replacing any existing notes.

void	AppendtoNotes (const string &note)
	Append a note to existing notes.

void	ClearNotes ()
	Clear all notes associated with this object.

void	SetLimit (_range lowhigh, const double &value)
	Set upper or lower limit for value highlighting.

void	SetOption (options_key opt, bool val)
	Set a configuration option.

bool	Option (options_key opt)
	Get the current value of a configuration option.

options &	GetOptions ()
	Get reference to the options structure.

QString	XAxisLabel () const
	Get the X-axis label.

QString	YAxisLabel () const
	Get the Y-axis label.

bool	SetXAxisLabel (const QString &label)
	Set the X-axis label.

bool	SetYAxisLabel (const QString &label)
	Set the Y-axis label.

Public Attributes
double	lowlimit
	Lower threshold for value highlighting (when enabled)

double	highlimit
	Upper threshold for value highlighting (when enabled)

bool	highlightoutsideoflimit = false
	Flag indicating whether to highlight values outside defined limits.

Private Attributes
string	Notes
	Textual annotations and metadata about the data.

options	Options
	Configuration options for serialization and display.

QString	XAxis_Label = "Sample"
	Label for the X-axis in plots and table headers.

QString	YAxis_Label = "Value"
	Label for the Y-axis in plots and table headers.

Detailed Description

Abstract base class providing common serialization and visualization interface.

Interface serves as an abstract base class for data structures that need to be:

Serialized to/from various formats (JSON, strings, files)
Displayed in Qt table widgets
Annotated with metadata (notes, axis labels)
Configured with display options (highlighting, limits)

This class provides a unified interface for data handling across the application, ensuring consistent behavior for file I/O, JSON serialization, and Qt integration.

Derived classes must implement the virtual methods to provide specific serialization and visualization behavior appropriate to their data structure.

Note

This is an abstract base class. Concrete implementations include:

Elemental_Profile: Single sample's elemental concentrations
Elemental_Profile_Set: Collection of samples
CMBVector: Vector data with labels
CMBMatrix: Matrix data with row/column labels

See also: Elemental_Profile; Elemental_Profile_Set; CMBVector; CMBMatrix

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 64 of file interface.h.

Constructor & Destructor Documentation

◆ Interface() [1/2]

Interface::Interface ( )

Default constructor.

Initializes an Interface object with default settings:

Empty notes
Default axis labels ("Sample", "Value")
Highlight limits disabled
Default serialization options

Definition at line 3 of file interface.cpp.

◆ Interface() [2/2]

Interface::Interface ( const Interface & intf )

Copy constructor.

Parameters

intf	The Interface object to copy from

Creates a deep copy of another Interface object, including all configuration options, axis labels, notes, and limit settings.

Definition at line 8 of file interface.cpp.

References Options, XAxis_Label, and YAxis_Label.

Member Function Documentation

◆ AppendtoNotes()

void Interface::AppendtoNotes ( const string & note )

inline

Append a note to existing notes.

Parameters

note	The note text to append

If notes are empty, sets the note directly. Otherwise, appends with semicolon separator ("; ") for readability.

Definition at line 196 of file interface.h.

References Notes.

Referenced by Elemental_Profile_Set::DetectOutliers().

◆ ClearNotes()

void Interface::ClearNotes ( )

inline

Clear all notes associated with this object.

Definition at line 207 of file interface.h.

References Notes.

◆ GetNotes()

string Interface::GetNotes ( ) const

inline

Get the notes/annotations associated with this object.

Returns: String containing all notes, semicolon-separated if multiple

Notes are used to store warnings, outlier information, QA/QC flags, or other metadata about the data.

Definition at line 177 of file interface.h.

References Notes.

Referenced by SelectSampleTableModel::data().

◆ GetOptions()

options & Interface::GetOptions ( )

inline

Get reference to the options structure.

Returns: Reference to the internal options object

Provides direct access to all configuration options for batch modification or inspection.

Definition at line 275 of file interface.h.

References Options.

Referenced by Conductor::ExecuteLevenbergMarquardtBatch(), Conductor::ExecuteSourceVerify(), Results::ReadFromJson(), and CMBTimeSeriesSet::ToTable().

◆ operator=()

Interface & Interface::operator= ( const Interface & intf )

Assignment operator.

Parameters

intf	The Interface object to copy from

Returns: Reference to this object for chaining

Copies all data and settings from another Interface object.

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 14 of file interface.cpp.

References Options, XAxis_Label, and YAxis_Label.

Referenced by CMBVectorSet::operator=(), CMBVectorSetSet::operator=(), Contribution::operator=(), Elemental_Profile::operator=(), Elemental_Profile_Set::operator=(), MultipleLinearRegression::operator=(), MultipleLinearRegressionSet::operator=(), Range::operator=(), RangeSet::operator=(), and ResultItem::operator=().

◆ Option()

bool Interface::Option ( options_key opt )

inline

Get the current value of a configuration option.

Parameters

opt	The option identifier to query

Returns: The current boolean value of the option, false if option not recognized

Definition at line 261 of file interface.h.

References Options, single_column_x, and options::single_column_x.

Referenced by CMBTimeSeriesSet::ToTable().

◆ Read()

bool Interface::Read ( const QStringList & strlist )

virtual

Parse object data from a string list.

Parameters

strlist List of strings containing the data to parse

Returns: true if parsing was successful, false otherwise

Pure virtual method for text-based deserialization. Each string in the list typically represents one line of input data.

Note: Format and parsing rules are determined by the derived class

Reimplemented in Elemental_Profile, Contribution, Elemental_Profile_Set, Range, and RangeSet.

Definition at line 43 of file interface.cpp.

◆ ReadFromJsonObject()

bool Interface::ReadFromJsonObject ( const QJsonObject & jsonobject )

virtual

Deserialize object from JSON format.

Parameters

jsonobject The JSON object to read from

Returns: true if deserialization was successful, false otherwise

Pure virtual method for JSON deserialization. Derived classes must implement this to reconstruct their data structure from a JSON object.

Warning: Implementations should validate JSON structure and handle missing fields gracefully

Reimplemented in Elemental_Profile, CMBMatrix, CMBTimeSeries, CMBTimeSeriesSet, CMBVector, CMBVectorSet, CMBVectorSetSet, Contribution, Elemental_Profile_Set, MultipleLinearRegression, MultipleLinearRegressionSet, Range, and RangeSet.

Definition at line 32 of file interface.cpp.

◆ SetLimit()

void Interface::SetLimit	(	_range	lowhigh,
		const double &	value
	)

inline

Set upper or lower limit for value highlighting.

Parameters

lowhigh	Specifies whether setting high or low limit
value	The threshold value

Sets the specified limit and automatically enables highlighting. Values outside [lowlimit, highlimit] will be highlighted when displayed.

See also: highlightoutsideoflimit

Definition at line 233 of file interface.h.

References high, highlightoutsideoflimit, highlimit, and lowlimit.

Referenced by Conductor::ExecuteANOVA(), Conductor::ExecuteCorrelationMatrix(), Conductor::ExecuteEDP(), Conductor::ExecuteEDPM(), Conductor::ExecuteOutlierAnalysis(), and Results::ReadFromJson().

◆ SetNotes()

void Interface::SetNotes ( const string & note )

inline

Set the notes for this object, replacing any existing notes.

Parameters

note	The new note text

Definition at line 185 of file interface.h.

References Notes.

◆ SetOption()

void Interface::SetOption	(	options_key	opt,
		bool	val
	)

inline

Set a configuration option.

Parameters

opt	The option identifier to set
val	The boolean value to set

Currently supports:

options_key::single_column_x: Enable single-column mode for X values

Definition at line 250 of file interface.h.

References Options, single_column_x, and options::single_column_x.

Referenced by Conductor::ExecuteLevenbergMarquardtBatch(), Conductor::ExecuteSourceVerify(), and Results::ReadFromJson().

◆ SetXAxisLabel()

bool Interface::SetXAxisLabel ( const QString & label )

inline

Set the X-axis label.

Parameters

label The new X-axis label

Returns: true (always succeeds)

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 307 of file interface.h.

References XAxis_Label.

Referenced by Elemental_Profile::ReadFromJsonObject(), CMBVector::ReadFromJsonObject(), and ResultItem::setXAxisTitle().

◆ SetYAxisLabel()

bool Interface::SetYAxisLabel ( const QString & label )

inline

Set the Y-axis label.

Parameters

label The new Y-axis label

Returns: true (always succeeds)

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 317 of file interface.h.

References YAxis_Label.

Referenced by Elemental_Profile::ReadFromJsonObject(), and ResultItem::setYAxisTitle().

◆ toJsonObject()

QJsonObject Interface::toJsonObject ( ) const

virtual

Serialize object to JSON format.

Returns: QJsonObject containing the serialized data

Pure virtual method for JSON serialization. Derived classes must implement this to convert their data structure to a JSON object suitable for saving to .json files or transmitting over network.

Note: The JSON structure is determined by the derived class

Reimplemented in CMBMatrix, CMBTimeSeries, CMBTimeSeriesSet, CMBVector, CMBVectorSet, CMBVectorSetSet, Contribution, Elemental_Profile, Elemental_Profile_Set, MultipleLinearRegression, MultipleLinearRegressionSet, Range, and RangeSet.

Definition at line 27 of file interface.cpp.

Referenced by Results::toJsonObject().

◆ ToString()

string Interface::ToString ( ) const

virtual

Convert object to string representation.

Returns: String representation of the object's data

Pure virtual method that must be implemented by derived classes to provide a human-readable string representation of their data. Typically used for text file export or debugging.

Note: Format is determined by the derived class implementation

Reimplemented in CMBMatrix, CMBTimeSeries, CMBTimeSeriesSet, CMBVector, CMBVectorSet, CMBVectorSetSet, Contribution, Elemental_Profile, Elemental_Profile_Set, MultipleLinearRegression, MultipleLinearRegressionSet, Range, and RangeSet.

Definition at line 22 of file interface.cpp.

Referenced by ResultsWindow::AppendResult().

◆ ToTable()

QTableWidget * Interface::ToTable ( )

virtual

Create a Qt table widget representation of the data.

Returns: Pointer to a newly allocated QTableWidget displaying the data

Pure virtual method that creates a visual table representation of the object's data suitable for display in the Qt GUI. The returned widget is dynamically allocated and should be managed by Qt's parent-child ownership system.

Note: Caller does not need to delete the returned widget if added to a parent; Highlighting based on limit settings is applied if enabled

Reimplemented in CMBMatrix, CMBTimeSeries, CMBTimeSeriesSet, CMBVector, CMBVectorSet, CMBVectorSetSet, Contribution, Elemental_Profile, Elemental_Profile_Set, MultipleLinearRegressionSet, and RangeSet.

Definition at line 48 of file interface.cpp.

◆ writetofile()

bool Interface::writetofile ( QFile * file )

virtual

Write object data to a file.

Parameters

file	Pointer to an open QFile object for writing

Returns: true if write was successful, false otherwise

Pure virtual method for file output. Derived classes implement this to write their data to an open file stream in their preferred text format.

Precondition: file must be opened in write mode

Note: File is not closed by this method

Reimplemented in CMBTimeSeries, CMBTimeSeriesSet, Contribution, Range, RangeSet, CMBMatrix, CMBVector, CMBVectorSet, CMBVectorSetSet, Elemental_Profile, and Elemental_Profile_Set.

Definition at line 38 of file interface.cpp.

◆ XAxisLabel()

QString Interface::XAxisLabel ( ) const

inline

Get the X-axis label.

Returns: The current X-axis label string

X-axis labels are used in plots and table headers to identify the independent variable or sample identifier.

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 287 of file interface.h.

References XAxis_Label.

Referenced by CMBVector::toJsonObject(), Elemental_Profile::toJsonObject(), CMBVector::ToString(), and ResultItem::XAxisTitle().

◆ YAxisLabel()

QString Interface::YAxisLabel ( ) const

inline

Get the Y-axis label.

Returns: The current Y-axis label string

Y-axis labels are used in plots and table headers to identify the dependent variable or measurement type (e.g., "Concentration (mg/kg)").

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 298 of file interface.h.

References YAxis_Label.

Referenced by CMBVector::toJsonObject(), Elemental_Profile::toJsonObject(), CMBVector::ToString(), CMBVector::ToTable(), Elemental_Profile::ToTable(), and ResultItem::YAxisTitle().

Member Data Documentation

◆ highlightoutsideoflimit

bool Interface::highlightoutsideoflimit = false

Flag indicating whether to highlight values outside defined limits.

When true, the ToTable() method will highlight cells with values outside the range [lowlimit, highlimit] in red, useful for identifying outliers or quality control issues.

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 221 of file interface.h.

Referenced by CMBMatrix::CMBMatrix(), CMBVector::CMBVector(), CMBMatrix::operator=(), CMBVector::operator=(), SetLimit(), CMBMatrix::ToTable(), CMBTimeSeries::ToTable(), CMBVector::ToTable(), Elemental_Profile::ToTable(), and Elemental_Profile_Set::ToTable().

◆ highlimit

double Interface::highlimit

Upper threshold for value highlighting (when enabled)

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 212 of file interface.h.

Referenced by CMBMatrix::CMBMatrix(), CMBVector::CMBVector(), CMBMatrix::operator=(), CMBVector::operator=(), SetLimit(), CMBMatrix::ToTable(), CMBTimeSeries::ToTable(), CMBVector::ToTable(), Elemental_Profile::ToTable(), and Elemental_Profile_Set::ToTable().

◆ lowlimit

double Interface::lowlimit

Lower threshold for value highlighting (when enabled)

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 211 of file interface.h.

Referenced by CMBMatrix::CMBMatrix(), CMBVector::CMBVector(), CMBMatrix::operator=(), CMBVector::operator=(), SetLimit(), CMBMatrix::ToTable(), CMBTimeSeries::ToTable(), CMBVector::ToTable(), Elemental_Profile::ToTable(), and Elemental_Profile_Set::ToTable().

◆ Notes

string Interface::Notes

private

Textual annotations and metadata about the data.

Stores semicolon-separated notes such as outlier warnings, QA/QC flags, or processing history. Can be displayed to users or included in reports.

Definition at line 330 of file interface.h.

Referenced by AppendtoNotes(), ClearNotes(), GetNotes(), and SetNotes().

◆ Options

options Interface::Options

private

Configuration options for serialization and display.

Contains settings that control how data is formatted during export and how it should be interpreted during import.

Definition at line 338 of file interface.h.

Referenced by Interface(), GetOptions(), operator=(), Option(), and SetOption().

◆ XAxis_Label

QString Interface::XAxis_Label = "Sample"

private

Label for the X-axis in plots and table headers.

Default is "Sample" but can be customized to reflect the actual independent variable (e.g., "Time", "Distance", "Sample ID").

Definition at line 346 of file interface.h.

Referenced by Interface(), operator=(), SetXAxisLabel(), and XAxisLabel().

◆ YAxis_Label

QString Interface::YAxis_Label = "Value"

private

Label for the Y-axis in plots and table headers.

Default is "Value" but should be customized to reflect the measurement type and units (e.g., "Lead Concentration (mg/kg)", "δ15N (‰)").

Definition at line 354 of file interface.h.

Referenced by Interface(), operator=(), SetYAxisLabel(), and YAxisLabel().

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Interface() [1/2]

◆ Interface() [2/2]

Member Function Documentation

◆ AppendtoNotes()

◆ ClearNotes()

◆ GetNotes()

◆ GetOptions()

◆ operator=()

◆ Option()

◆ Read()

◆ ReadFromJsonObject()

◆ SetLimit()

◆ SetNotes()

◆ SetOption()

◆ SetXAxisLabel()

◆ SetYAxisLabel()

◆ toJsonObject()

◆ ToString()

◆ ToTable()

◆ writetofile()

◆ XAxisLabel()

◆ YAxisLabel()

Member Data Documentation

◆ highlightoutsideoflimit

◆ highlimit

◆ lowlimit

◆ Notes

◆ Options

◆ XAxis_Label

◆ YAxis_Label
