Range Class Reference

#include </home/runner/work/SedSat3/SedSat3/range.h>

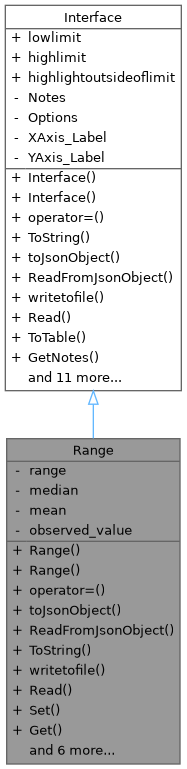

Inheritance diagram for Range:

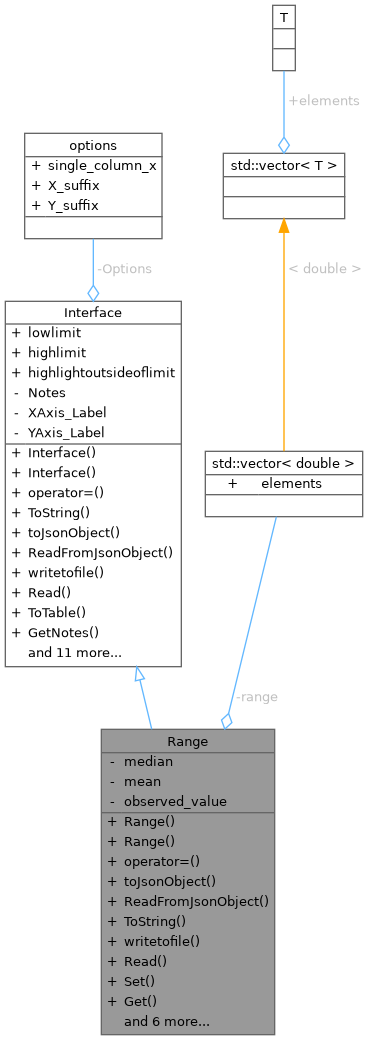

Collaboration diagram for Range:

Public Member Functions
	Range ()
	Range (const Range &rhs)
Range &	operator= (const Range &rhs)
QJsonObject	toJsonObject () const override
	Serialize object to JSON format.
bool	ReadFromJsonObject (const QJsonObject &jsonobject) override
	Deserialize object from JSON format.
string	ToString () const override
	Convert object to string representation.
bool	writetofile (QFile *) override
	Write object data to a file.
bool	Read (const QStringList &strlist) override
	Parse object data from a string list.
void	Set (_range lowhigh, const double &value)
double	Get (_range lowhigh) const
double	Mean () const
void	SetMean (const double &m)
double	Median () const
void	SetMedian (const double &m)
void	SetValue (const double value)
double	GetValue ()
Public Member Functions inherited from Interface
	Interface ()
	Default constructor.
	Interface (const Interface &intf)
	Copy constructor.
Interface &	operator= (const Interface &intf)
	Assignment operator.
virtual QTableWidget *	ToTable ()
	Create a Qt table widget representation of the data.
string	GetNotes () const
	Get the notes/annotations associated with this object.
void	SetNotes (const string &note)
	Set the notes for this object, replacing any existing notes.
void	AppendtoNotes (const string &note)
	Append a note to existing notes.
void	ClearNotes ()
	Clear all notes associated with this object.
void	SetLimit (_range lowhigh, const double &value)
	Set upper or lower limit for value highlighting.
void	SetOption (options_key opt, bool val)
	Set a configuration option.
bool	Option (options_key opt)
	Get the current value of a configuration option.
options &	GetOptions ()
	Get reference to the options structure.
QString	XAxisLabel () const
	Get the X-axis label.
QString	YAxisLabel () const
	Get the Y-axis label.
bool	SetXAxisLabel (const QString &label)
	Set the X-axis label.
bool	SetYAxisLabel (const QString &label)
	Set the Y-axis label.

Private Attributes
vector< double >	range
double	median = 0
double	mean = 0
double	observed_value =0

Additional Inherited Members
Public Attributes inherited from Interface
double	lowlimit
	Lower threshold for value highlighting (when enabled)
double	highlimit
	Upper threshold for value highlighting (when enabled)
bool	highlightoutsideoflimit = false
	Flag indicating whether to highlight values outside defined limits.

Detailed Description

Definition at line 7 of file range.h.

Constructor & Destructor Documentation

Range() [1/2]

Range::Range

(

)

Definition at line 6 of file range.cpp.

References range.

Range() [2/2]

Range::Range

(

const Range &

rhs

)

Definition at line 11 of file range.cpp.

References mean, median, observed_value, and range.

Member Function Documentation

Get()

double Range::Get

(

_range

lowhigh

)

const

Definition at line 71 of file range.cpp.

References high, and range.

Referenced by SourceSinkData::MCMC_Batch().

GetValue()

double Range::GetValue ( )

inline

Definition at line 25 of file range.h.

References observed_value.

Mean()

double Range::Mean ( ) const

inline

Definition at line 20 of file range.h.

References mean.

Referenced by SourceSinkData::MCMC_Batch().

Median()

double Range::Median ( ) const

inline

Definition at line 22 of file range.h.

References median.

Referenced by SourceSinkData::MCMC_Batch().

operator=()

Range & Range::operator=

(

const Range &

rhs

)

Definition at line 18 of file range.cpp.

References mean, median, observed_value, Interface::operator=(), and range.

Read()

bool Range::Read ( const QStringList &  strlist )

overridevirtual

Parse object data from a string list.

Parameters

strlist

List of strings containing the data to parse

Returns

true if parsing was successful, false otherwise

Pure virtual method for text-based deserialization. Each string in the list typically represents one line of input data.

Note

Format and parsing rules are determined by the derived class

Reimplemented from Interface.

Definition at line 59 of file range.cpp.

ReadFromJsonObject()

bool Range::ReadFromJsonObject ( const QJsonObject &  jsonobject )

overridevirtual

Deserialize object from JSON format.

Parameters

jsonobject

The JSON object to read from

Returns

true if deserialization was successful, false otherwise

Pure virtual method for JSON deserialization. Derived classes must implement this to reconstruct their data structure from a JSON object.

Warning

Implementations should validate JSON structure and handle missing fields gracefully

Reimplemented from Interface.

Definition at line 40 of file range.cpp.

References mean, median, observed_value, and range.

Referenced by RangeSet::ReadFromJsonObject().

Set()

void Range::Set	(	_range	lowhigh,
		const double &	value
	)

Definition at line 64 of file range.cpp.

References high, and range.

Referenced by SourceSinkData::BootStrap(), and SourceSinkData::MCMC().

SetMean()

void Range::SetMean ( const double &  m )

inline

Definition at line 21 of file range.h.

References mean.

Referenced by SourceSinkData::BootStrap(), and SourceSinkData::MCMC().

SetMedian()

void Range::SetMedian ( const double &  m )

inline

Definition at line 23 of file range.h.

References median.

Referenced by SourceSinkData::BootStrap(), and SourceSinkData::MCMC().

SetValue()

void Range::SetValue ( const double  value )

inline

Definition at line 24 of file range.h.

References observed_value.

Referenced by SourceSinkData::MCMC().

toJsonObject()

QJsonObject Range::toJsonObject ( ) const

overridevirtual

Serialize object to JSON format.

Returns

QJsonObject containing the serialized data

Pure virtual method for JSON serialization. Derived classes must implement this to convert their data structure to a JSON object suitable for saving to .json files or transmitting over network.

Note

The JSON structure is determined by the derived class

Reimplemented from Interface.

Definition at line 28 of file range.cpp.

References mean, median, observed_value, and range.

ToString()

string Range::ToString ( ) const

overridevirtual

Convert object to string representation.

Returns

String representation of the object's data

Pure virtual method that must be implemented by derived classes to provide a human-readable string representation of their data. Typically used for text file export or debugging.

Note

Format is determined by the derived class implementation

Reimplemented from Interface.

Definition at line 50 of file range.cpp.

References range.

Referenced by writetofile().

writetofile()

bool Range::writetofile ( QFile *  file )

overridevirtual

Write object data to a file.

Parameters

file	Pointer to an open QFile object for writing

Returns

true if write was successful, false otherwise

Pure virtual method for file output. Derived classes implement this to write their data to an open file stream in their preferred text format.

Precondition

file must be opened in write mode

Note

File is not closed by this method

Reimplemented from Interface.

Definition at line 54 of file range.cpp.

References ToString().

Member Data Documentation

mean

double Range::mean = 0

private

Definition at line 29 of file range.h.

Referenced by Range(), SourceSinkData::MCMC(), Mean(), operator=(), ReadFromJsonObject(), SetMean(), and toJsonObject().

median

double Range::median = 0

private

Definition at line 28 of file range.h.

Referenced by Range(), Median(), operator=(), ReadFromJsonObject(), SetMedian(), and toJsonObject().

observed_value

double Range::observed_value =0

private

Definition at line 30 of file range.h.

Referenced by Range(), GetValue(), operator=(), ReadFromJsonObject(), SetValue(), and toJsonObject().

range

vector<double> Range::range

private

Definition at line 27 of file range.h.

Referenced by Range(), Range(), Get(), operator=(), ReadFromJsonObject(), Set(), toJsonObject(), and ToString().

---

The documentation for this class was generated from the following files:

• range.h
• range.cpp
