CMBTimeSeries Class Reference

Time series data container with Interface support. More...

#include </home/runner/work/SedSat3/SedSat3/cmbtimeseries.h>

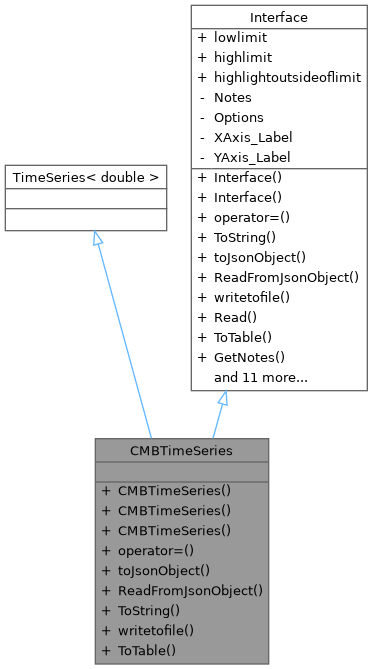

Inheritance diagram for CMBTimeSeries:

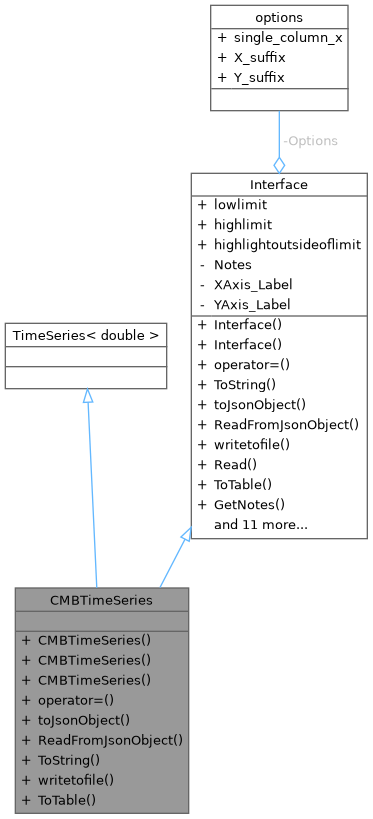

Collaboration diagram for CMBTimeSeries:

Public Member Functions
	CMBTimeSeries ()
	Default constructor - creates an empty time series.
	CMBTimeSeries (int n)
	Constructs a time series with given capacity.
	CMBTimeSeries (const CMBTimeSeries &mp)
	Copy constructor.
CMBTimeSeries &	operator= (const CMBTimeSeries &mp)
	Assignment operator.
QJsonObject	toJsonObject () const override
	Serializes time series to JSON format.
bool	ReadFromJsonObject (const QJsonObject &jsonobject) override
	Deserializes time series from JSON format.
string	ToString () const override
	Converts time series to CSV-formatted string.
bool	writetofile (QFile *) override
	Writes time series to file.
QTableWidget *	ToTable () override
	Creates a QTableWidget for displaying time series data.
Public Member Functions inherited from Interface
	Interface ()
	Default constructor.
	Interface (const Interface &intf)
	Copy constructor.
Interface &	operator= (const Interface &intf)
	Assignment operator.
virtual bool	Read (const QStringList &strlist)
	Parse object data from a string list.
string	GetNotes () const
	Get the notes/annotations associated with this object.
void	SetNotes (const string &note)
	Set the notes for this object, replacing any existing notes.
void	AppendtoNotes (const string &note)
	Append a note to existing notes.
void	ClearNotes ()
	Clear all notes associated with this object.
void	SetLimit (_range lowhigh, const double &value)
	Set upper or lower limit for value highlighting.
void	SetOption (options_key opt, bool val)
	Set a configuration option.
bool	Option (options_key opt)
	Get the current value of a configuration option.
options &	GetOptions ()
	Get reference to the options structure.
QString	XAxisLabel () const
	Get the X-axis label.
QString	YAxisLabel () const
	Get the Y-axis label.
bool	SetXAxisLabel (const QString &label)
	Set the X-axis label.
bool	SetYAxisLabel (const QString &label)
	Set the Y-axis label.

Additional Inherited Members
Public Attributes inherited from Interface
double	lowlimit
	Lower threshold for value highlighting (when enabled)
double	highlimit
	Upper threshold for value highlighting (when enabled)
bool	highlightoutsideoflimit = false
	Flag indicating whether to highlight values outside defined limits.

Detailed Description

Time series data container with Interface support.

Extends TimeSeries<double> with JSON serialization, file I/O, and table widget generation. Used for storing time-indexed data such as concentration profiles or temporal distributions.

Definition at line 14 of file cmbtimeseries.h.

Constructor & Destructor Documentation

CMBTimeSeries() [1/3]

CMBTimeSeries::CMBTimeSeries

(

)

Default constructor - creates an empty time series.

Definition at line 6 of file cmbtimeseries.cpp.

CMBTimeSeries() [2/3]

CMBTimeSeries::CMBTimeSeries

(

int

n

)

Constructs a time series with given capacity.

Parameters

n	Initial capacity

Definition at line 16 of file cmbtimeseries.cpp.

CMBTimeSeries() [3/3]

CMBTimeSeries::CMBTimeSeries

(

const CMBTimeSeries &

mp

)

Copy constructor.

Parameters

mp	Time series to copy from

Definition at line 11 of file cmbtimeseries.cpp.

Member Function Documentation

operator=()

CMBTimeSeries & CMBTimeSeries::operator=

(

const CMBTimeSeries &

mp

)

Assignment operator.

Parameters

mp	Time series to assign from

Returns

Reference to this time series

Definition at line 21 of file cmbtimeseries.cpp.

References operator=().

Referenced by operator=().

ReadFromJsonObject()

bool CMBTimeSeries::ReadFromJsonObject ( const QJsonObject &  jsonobject )

overridevirtual

Deserializes time series from JSON format.

Parameters

jsonobject

JSON object to read from

Returns

true if successful, false otherwise

Reimplemented from Interface.

Definition at line 42 of file cmbtimeseries.cpp.

toJsonObject()

QJsonObject CMBTimeSeries::toJsonObject ( ) const

overridevirtual

Serializes time series to JSON format.

Returns

JSON object containing time and value arrays

Reimplemented from Interface.

Definition at line 26 of file cmbtimeseries.cpp.

ToString()

string CMBTimeSeries::ToString ( ) const

overridevirtual

Converts time series to CSV-formatted string.

Returns

String representation with time,value pairs

Reimplemented from Interface.

Definition at line 48 of file cmbtimeseries.cpp.

Referenced by writetofile().

ToTable()

QTableWidget * CMBTimeSeries::ToTable ( )

overridevirtual

Creates a QTableWidget for displaying time series data.

Generates a single-column table with time values as row labels and values in the column. Highlights values outside limit range if highlighting is enabled.

Returns

Pointer to newly created QTableWidget (caller takes ownership)

Reimplemented from Interface.

Definition at line 65 of file cmbtimeseries.cpp.

References Interface::highlightoutsideoflimit, Interface::highlimit, and Interface::lowlimit.

writetofile()

bool CMBTimeSeries::writetofile ( QFile *  file )

overridevirtual

Writes time series to file.

Parameters

file	File pointer to write to

Returns

true if successful

Reimplemented from Interface.

Definition at line 59 of file cmbtimeseries.cpp.

References ToString().

---

The documentation for this class was generated from the following files:

• cmbtimeseries.h
• cmbtimeseries.cpp
