Vector class with string labels for Chemical Mass Balance analysis. More...

#include </home/runner/work/SedSat3/SedSat3/cmbvector.h>

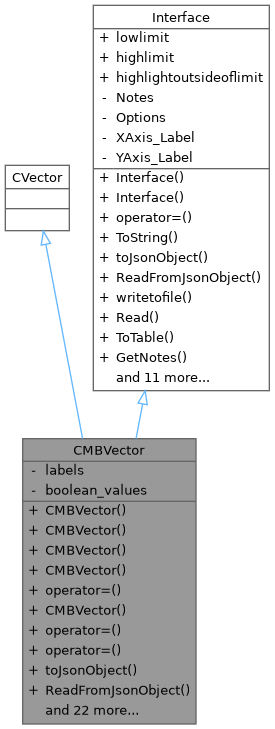

Inheritance diagram for CMBVector:

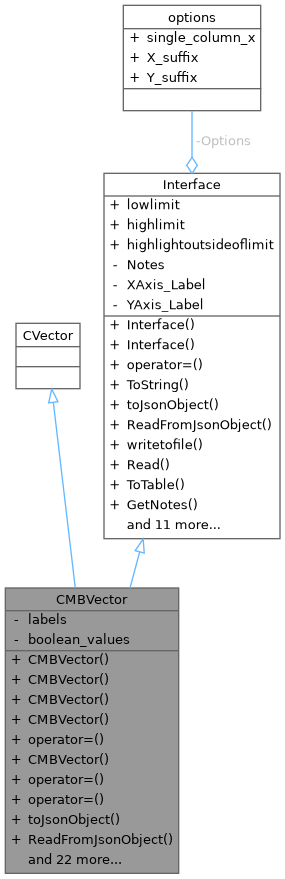

Collaboration diagram for CMBVector:

Public Member Functions
	CMBVector ()
	Default constructor - creates an empty vector.

	CMBVector (int n)
	Constructs a vector with given size.

	CMBVector (const CMBVector &mp)
	Copy constructor from CMBVector.

	CMBVector (const CVector_arma &mp)
	Constructs from Armadillo vector.

CMBVector &	operator= (const CMBVector &mp)
	Assignment operator from CMBVector.

	CMBVector (const CVector &mp)
	Constructs from base CVector.

CMBVector &	operator= (const CVector &mp)
	Assignment operator from base CVector.

CMBVector &	operator= (const CVector_arma &mp)
	Assignment operator from Armadillo vector.

QJsonObject	toJsonObject () const override
	Serializes vector to JSON format.

bool	ReadFromJsonObject (const QJsonObject &jsonobject) override
	Deserializes vector from JSON format.

string	ToString () const override
	Converts vector to CSV-formatted string.

QTableWidget *	ToTable () override
	Creates a QTableWidget for displaying vector data.

bool	writetofile (QFile *file) override
	Writes vector to file in CSV format.

double	valueAt (int i) const
	Gets value at specified index.

string	Label (int i) const
	Gets label at specified index.

double	valueAt (const string &label) const
	Gets value by element label.

int	LookupLabel (const string &label) const
	Finds index of element with given label.

vector< string >	Labels () const
	Gets all element labels.

void	SetLabel (int i, const string &label)
	Sets label at specified index.

void	SetLabels (const vector< string > &label)
	Sets all element labels at once.

void	SetBooleanValue (bool val)
	Sets boolean display mode for table widget.

CVector	toVector () const
	Converts to base CVector type (without labels)

CMBVector	Sort (const CMBVector &sortvector=CMBVector()) const
	Sorts vector by values in descending order.

CMBVector	AbsSort (const CMBVector &sortvector=CMBVector()) const
	Sorts vector by absolute values in descending order.

string	MaxElement () const
	Finds label of element with maximum value.

string	MaxAbsElement () const
	Finds label of element with maximum absolute value.

CMBVector	Eliminate (const string &element) const
	Creates new vector with specified element removed.

void	append (const string &label, const double &val)
	Appends a labeled element to the vector.

CMBVector	Extract (int start, int end) const
	Extracts a range of elements by index.

int	size () const
	Gets number of elements in vector.

CMBVector	ExtractWithinRange (const double &lowval, const double &highval) const
	Extracts elements with values within specified range.

CMBVector	ExtractUpToMinimum () const
	Extracts elements up to first minimum value.

Public Member Functions inherited from Interface
	Interface ()
	Default constructor.

	Interface (const Interface &intf)
	Copy constructor.

Interface &	operator= (const Interface &intf)
	Assignment operator.

virtual bool	Read (const QStringList &strlist)
	Parse object data from a string list.

string	GetNotes () const
	Get the notes/annotations associated with this object.

void	SetNotes (const string &note)
	Set the notes for this object, replacing any existing notes.

void	AppendtoNotes (const string &note)
	Append a note to existing notes.

void	ClearNotes ()
	Clear all notes associated with this object.

void	SetLimit (_range lowhigh, const double &value)
	Set upper or lower limit for value highlighting.

void	SetOption (options_key opt, bool val)
	Set a configuration option.

bool	Option (options_key opt)
	Get the current value of a configuration option.

options &	GetOptions ()
	Get reference to the options structure.

QString	XAxisLabel () const
	Get the X-axis label.

QString	YAxisLabel () const
	Get the Y-axis label.

bool	SetXAxisLabel (const QString &label)
	Set the X-axis label.

bool	SetYAxisLabel (const QString &label)
	Set the Y-axis label.

Private Attributes
vector< string >	labels
	Labels for each element.

bool	boolean_values = false
	Display values as Pass/Fail instead of numbers.

Additional Inherited Members
Public Attributes inherited from Interface
double	lowlimit
	Lower threshold for value highlighting (when enabled)

double	highlimit
	Upper threshold for value highlighting (when enabled)

bool	highlightoutsideoflimit = false
	Flag indicating whether to highlight values outside defined limits.

Detailed Description

Vector class with string labels for Chemical Mass Balance analysis.

Extends CVector with element labels, JSON serialization, table widget generation, and specialized operations for CMB calculations. Supports both numeric and boolean display modes, sorting operations, and range-based extraction.

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 16 of file cmbvector.h.

Constructor & Destructor Documentation

◆ CMBVector() [1/5]

CMBVector::CMBVector ( )

Default constructor - creates an empty vector.

Definition at line 6 of file cmbvector.cpp.

◆ CMBVector() [2/5]

CMBVector::CMBVector ( int n )

Constructs a vector with given size.

Parameters

n	Number of elements

Definition at line 32 of file cmbvector.cpp.

References labels.

◆ CMBVector() [3/5]

CMBVector::CMBVector ( const CMBVector & mp )

Copy constructor from CMBVector.

Parameters

mp	Vector to copy from

Definition at line 11 of file cmbvector.cpp.

References boolean_values, Interface::highlightoutsideoflimit, Interface::highlimit, labels, and Interface::lowlimit.

◆ CMBVector() [4/5]

CMBVector::CMBVector ( const CVector_arma & mp )

Constructs from Armadillo vector.

Parameters

mp	Armadillo vector to copy from

Definition at line 26 of file cmbvector.cpp.

References labels.

◆ CMBVector() [5/5]

CMBVector::CMBVector ( const CVector & mp )

Constructs from base CVector.

Parameters

mp	Base vector to copy from

Definition at line 21 of file cmbvector.cpp.

References labels.

Member Function Documentation

◆ AbsSort()

CMBVector CMBVector::AbsSort ( const CMBVector & sortvector = CMBVector() ) const

Sorts vector by absolute values in descending order.

Parameters

sortvector Optional vector to use for sorting order (default: sort by self)

Returns: New sorted CMBVector with labels preserved

Definition at line 219 of file cmbvector.cpp.

References append(), Eliminate(), MaxAbsElement(), and valueAt().

◆ append()

void CMBVector::append	(	const string &	label,
		const double &	val
	)

Appends a labeled element to the vector.

Parameters

label	Element label
val	Element value

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 272 of file cmbvector.cpp.

References labels, and size().

Referenced by AbsSort(), Eliminate(), Conductor::ExecuteSDFAM(), Extract(), ExtractUpToMinimum(), ExtractWithinRange(), Sort(), Elemental_Profile::SortByConcentration(), SourceSinkData::StepwiseDiscriminantFunctionAnalysis(), and SourceSinkData::StepwiseDiscriminantFunctionAnalysis().

◆ Eliminate()

CMBVector CMBVector::Eliminate ( const string & element ) const

Creates new vector with specified element removed.

Parameters

element Label of element to remove

Returns: New CMBVector without the specified element

Definition at line 261 of file cmbvector.cpp.

References append(), Label(), and valueAt().

Referenced by AbsSort(), and Sort().

◆ Extract()

CMBVector CMBVector::Extract	(	int	start,
		int	end
	)		const

Extracts a range of elements by index.

Parameters

start	Starting index (inclusive)
end	Ending index (inclusive)

Returns: New CMBVector containing elements from start to end

Definition at line 303 of file cmbvector.cpp.

References append(), Label(), and valueAt().

◆ ExtractUpToMinimum()

CMBVector CMBVector::ExtractUpToMinimum ( ) const

Extracts elements up to first minimum value.

Returns elements from start until the first element whose value is less than the previous element's value.

Returns: New CMBVector containing elements up to minimum

Definition at line 291 of file cmbvector.cpp.

References append(), labels, size(), and valueAt().

Referenced by Conductor::ExecuteSDFAM().

◆ ExtractWithinRange()

CMBVector CMBVector::ExtractWithinRange	(	const double &	lowval,
		const double &	highval
	)		const

Extracts elements with values within specified range.

Parameters

lowval	Lower bound (exclusive)
highval	Upper bound (exclusive)

Returns: New CMBVector containing elements within range

Definition at line 280 of file cmbvector.cpp.

References append(), labels, size(), and valueAt().

Referenced by Conductor::ExecuteANOVA().

◆ Label()

string CMBVector::Label ( int i ) const

inline

Gets label at specified index.

Parameters

i	Element index

Returns: Label string at position i

Examples: /home/runner/work/SedSat3/SedSat3/src/elemental_profile.cpp.

Definition at line 118 of file cmbvector.h.

References labels.

Referenced by Eliminate(), Extract(), MaxAbsElement(), MaxElement(), Elemental_Profile::SelectTopElements(), and Elemental_Profile_Set::SelectTopElementsAggregate().

◆ Labels()

vector< string > CMBVector::Labels ( ) const

inline

Gets all element labels.

Returns: Vector of label strings

Definition at line 138 of file cmbvector.h.

References labels.

Referenced by Conductor::ExecuteANOVA(), Conductor::ExecuteSDFAM(), operator*(), operator*(), operator+(), operator+(), operator+(), operator-(), operator-(), operator-(), operator/(), and GeneralChart::PlotVector().

◆ LookupLabel()

int CMBVector::LookupLabel ( const string & label ) const

Finds index of element with given label.

Parameters

label Element label to find

Returns: Index of element, or -1 if not found

Definition at line 149 of file cmbvector.cpp.

References labels.

◆ MaxAbsElement()

string CMBVector::MaxAbsElement ( ) const

Finds label of element with maximum absolute value.

Returns: Label of element with maximum absolute value

Definition at line 248 of file cmbvector.cpp.

References Label(), and valueAt().

Referenced by AbsSort().

◆ MaxElement()

string CMBVector::MaxElement ( ) const

Finds label of element with maximum value.

Returns: Label of element with maximum value

Definition at line 235 of file cmbvector.cpp.

References Label(), and valueAt().

Referenced by Sort().

◆ operator=() [1/3]

CMBVector & CMBVector::operator= ( const CMBVector & mp )

Assignment operator from CMBVector.

Parameters

mp	Vector to assign from

Returns: Reference to this vector

Definition at line 38 of file cmbvector.cpp.

References boolean_values, Interface::highlightoutsideoflimit, Interface::highlimit, labels, and Interface::lowlimit.

◆ operator=() [2/3]

CMBVector & CMBVector::operator= ( const CVector & mp )

Assignment operator from base CVector.

Parameters

mp	Vector to assign from

Returns: Reference to this vector

Definition at line 57 of file cmbvector.cpp.

References labels.

◆ operator=() [3/3]

CMBVector & CMBVector::operator= ( const CVector_arma & mp )

Assignment operator from Armadillo vector.

Parameters

mp	Armadillo vector to assign from

Returns: Reference to this vector

Definition at line 50 of file cmbvector.cpp.

References labels.

◆ ReadFromJsonObject()

bool CMBVector::ReadFromJsonObject ( const QJsonObject & jsonobject )

overridevirtual

Deserializes vector from JSON format.

Parameters

jsonobject JSON object to read from

Returns: true if successful, false otherwise

Reimplemented from Interface.

Definition at line 81 of file cmbvector.cpp.

References labels, and Interface::SetXAxisLabel().

Referenced by Results::ReadFromJson(), and CMBVectorSet::ReadFromJsonObject().

◆ SetBooleanValue()

void CMBVector::SetBooleanValue ( bool val )

inline

Sets boolean display mode for table widget.

When true, values are displayed as "Pass" (0) or "Fail" (1) instead of numeric values.

Parameters

val	True to enable boolean display mode

Definition at line 161 of file cmbvector.h.

References boolean_values.

Referenced by Conductor::ExecuteBracketingAnalysis().

◆ SetLabel()

void CMBVector::SetLabel	(	int	i,
		const string &	label
	)

inline

Sets label at specified index.

Parameters

i	Element index
label	Label string to set

Definition at line 145 of file cmbvector.h.

References labels.

Referenced by SourceSinkData::BracketTest(), Elemental_Profile_Set::CalculateBoxCoxParameters(), Elemental_Profile_Set::CalculateDotProduct(), SourceSinkData::DFATransformed(), and SourceSinkData::DiscriminantFunctionAnalysis().

◆ SetLabels()

void CMBVector::SetLabels ( const vector< string > & label )

inline

Sets all element labels at once.

Parameters

label Vector of label strings

Definition at line 151 of file cmbvector.h.

References labels.

Referenced by SourceSinkData::ANOVA(), Elemental_Profile_Set::CalculateKolmogorovSmirnovStatistics(), SourceSinkData::DFA_eigvector(), SourceSinkData::DFA_weight_vector(), CMBMatrix::GetColumn(), CMBMatrix::GetRow(), SourceSinkData::MeanElementalContent(), SourceSinkData::MeanElementalContent(), operator*(), operator*(), operator*(), operator+(), operator+(), operator+(), operator-(), operator-(), operator-(), operator/(), and SourceSinkData::OptimalBoxCoxParameters().

◆ size()

int CMBVector::size ( ) const

inline

Gets number of elements in vector.

Returns: Number of elements

Definition at line 221 of file cmbvector.h.

Referenced by append(), SourceSinkData::BetweenGroupCovarianceMatrix(), SourceSinkData::BracketTest(), SourceSinkData::DiscriminantFunctionAnalysis(), ExtractUpToMinimum(), ExtractWithinRange(), operator-(), and SourceSinkData::TotalScatterMatrix().

◆ Sort()

CMBVector CMBVector::Sort ( const CMBVector & sortvector = CMBVector() ) const

Sorts vector by values in descending order.

Parameters

sortvector Optional vector to use for sorting order (default: sort by self)

Returns: New sorted CMBVector with labels preserved

Definition at line 203 of file cmbvector.cpp.

References append(), Eliminate(), MaxElement(), and valueAt().

◆ toJsonObject()

QJsonObject CMBVector::toJsonObject ( ) const

overridevirtual

Serializes vector to JSON format.

Returns: JSON object containing vector data and labels

Reimplemented from Interface.

Definition at line 65 of file cmbvector.cpp.

References labels, valueAt(), vector, Interface::XAxisLabel(), and Interface::YAxisLabel().

◆ ToString()

string CMBVector::ToString ( ) const

overridevirtual

Converts vector to CSV-formatted string.

Returns: String representation with labels and values

Reimplemented from Interface.

Definition at line 107 of file cmbvector.cpp.

References boolean_values, labels, valueAt(), Interface::XAxisLabel(), and Interface::YAxisLabel().

Referenced by CMBVectorSet::ToString(), and writetofile().

◆ ToTable()

QTableWidget * CMBVector::ToTable ( )

overridevirtual

Creates a QTableWidget for displaying vector data.

Generates a read-only table widget with labeled rows. Highlights values outside limit range if highlighting is enabled. Displays as "Pass"/"Fail" if boolean mode is set.

Returns: Pointer to newly created QTableWidget (caller takes ownership)

Reimplemented from Interface.

Definition at line 157 of file cmbvector.cpp.

References boolean_values, Interface::highlightoutsideoflimit, Interface::highlimit, labels, Interface::lowlimit, valueAt(), and Interface::YAxisLabel().

◆ toVector()

CVector CMBVector::toVector ( ) const

Converts to base CVector type (without labels)

Returns: CVector representation

Definition at line 196 of file cmbvector.cpp.

Referenced by operator*().

◆ valueAt() [1/2]

double CMBVector::valueAt ( const string & label ) const

Gets value by element label.

Parameters

label Element label to find

Returns: Value corresponding to label, or -999 if not found

Definition at line 141 of file cmbvector.cpp.

References labels, and valueAt().

◆ valueAt() [2/2]

double CMBVector::valueAt ( int i ) const

Gets value at specified index.

Parameters

i	Element index

Returns: Value at position i

Definition at line 136 of file cmbvector.cpp.

Referenced by AbsSort(), SourceSinkData::BracketTest(), Eliminate(), Conductor::ExecuteSDFAM(), Extract(), ExtractUpToMinimum(), ExtractWithinRange(), MaxAbsElement(), MaxElement(), Sort(), toJsonObject(), ToString(), ToTable(), and valueAt().

◆ writetofile()

bool CMBVector::writetofile ( QFile * file )

overridevirtual

Writes vector to file in CSV format.

Parameters

file	File pointer to write to

Returns: true if successful

Reimplemented from Interface.

Definition at line 130 of file cmbvector.cpp.

References ToString().

Member Data Documentation

◆ boolean_values

bool CMBVector::boolean_values = false

private

Display values as Pass/Fail instead of numbers.

Definition at line 243 of file cmbvector.h.

Referenced by CMBVector(), operator=(), SetBooleanValue(), ToString(), and ToTable().

◆ labels

vector<string> CMBVector::labels

private

Labels for each element.

Definition at line 242 of file cmbvector.h.

Referenced by CMBVector(), CMBVector(), CMBVector(), CMBVector(), append(), ExtractUpToMinimum(), ExtractWithinRange(), Label(), Labels(), LookupLabel(), operator=(), operator=(), operator=(), ReadFromJsonObject(), SetLabel(), SetLabels(), toJsonObject(), ToString(), ToTable(), and valueAt().

The documentation for this class was generated from the following files:

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CMBVector() [1/5]

◆ CMBVector() [2/5]

◆ CMBVector() [3/5]

◆ CMBVector() [4/5]

◆ CMBVector() [5/5]

Member Function Documentation

◆ AbsSort()

◆ append()

◆ Eliminate()

◆ Extract()

◆ ExtractUpToMinimum()

◆ ExtractWithinRange()

◆ Label()

◆ Labels()

◆ LookupLabel()

◆ MaxAbsElement()

◆ MaxElement()

◆ operator=() [1/3]

◆ operator=() [2/3]

◆ operator=() [3/3]

◆ ReadFromJsonObject()

◆ SetBooleanValue()

◆ SetLabel()

◆ SetLabels()

◆ size()

◆ Sort()

◆ toJsonObject()

◆ ToString()

◆ ToTable()

◆ toVector()

◆ valueAt() [1/2]

◆ valueAt() [2/2]

◆ writetofile()

Member Data Documentation

◆ boolean_values

◆ labels
