Contribution Class Reference

Source contribution container for Chemical Mass Balance results. More...

#include </home/runner/work/SedSat3/SedSat3/contribution.h>

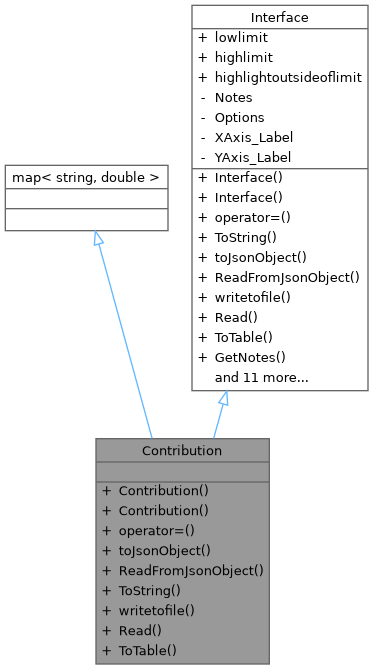

Inheritance diagram for Contribution:

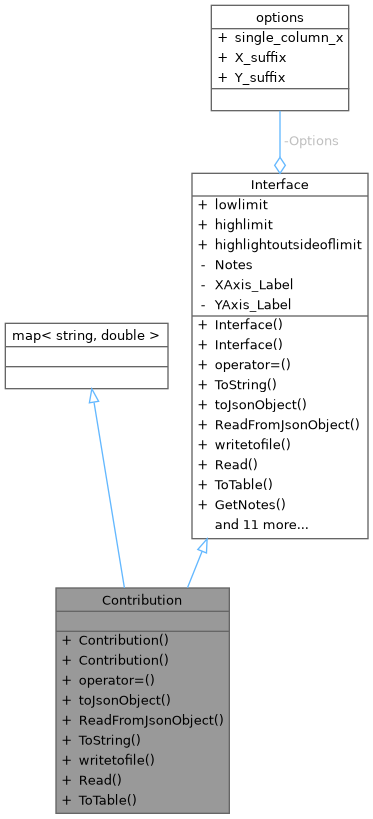

Collaboration diagram for Contribution:

Public Member Functions
	Contribution ()
	Default constructor - creates an empty contribution set.
	Contribution (const Contribution &rhs)
	Copy constructor.
Contribution &	operator= (const Contribution &rhs)
	Assignment operator.
QJsonObject	toJsonObject () const override
	Serializes contributions to JSON format.
bool	ReadFromJsonObject (const QJsonObject &jsonobject) override
	Deserializes contributions from JSON format.
string	ToString () const override
	Converts contributions to colon-separated string format.
bool	writetofile (QFile *) override
	Writes contributions to file.
bool	Read (const QStringList &strlist) override
	Reads contributions from string list.
QTableWidget *	ToTable () override
	Creates a QTableWidget for displaying contributions.
Public Member Functions inherited from Interface
	Interface ()
	Default constructor.
	Interface (const Interface &intf)
	Copy constructor.
Interface &	operator= (const Interface &intf)
	Assignment operator.
string	GetNotes () const
	Get the notes/annotations associated with this object.
void	SetNotes (const string &note)
	Set the notes for this object, replacing any existing notes.
void	AppendtoNotes (const string &note)
	Append a note to existing notes.
void	ClearNotes ()
	Clear all notes associated with this object.
void	SetLimit (_range lowhigh, const double &value)
	Set upper or lower limit for value highlighting.
void	SetOption (options_key opt, bool val)
	Set a configuration option.
bool	Option (options_key opt)
	Get the current value of a configuration option.
options &	GetOptions ()
	Get reference to the options structure.
QString	XAxisLabel () const
	Get the X-axis label.
QString	YAxisLabel () const
	Get the Y-axis label.
bool	SetXAxisLabel (const QString &label)
	Set the X-axis label.
bool	SetYAxisLabel (const QString &label)
	Set the Y-axis label.

Additional Inherited Members
Public Attributes inherited from Interface
double	lowlimit
	Lower threshold for value highlighting (when enabled)
double	highlimit
	Upper threshold for value highlighting (when enabled)
bool	highlightoutsideoflimit = false
	Flag indicating whether to highlight values outside defined limits.

Detailed Description

Source contribution container for Chemical Mass Balance results.

Stores source contributions as name-value pairs (map<string, double>). Provides JSON serialization, file I/O, and table widget generation. Used to represent the fractional or absolute contribution of each identified pollution source to a receptor site.

Definition at line 21 of file contribution.h.

Constructor & Destructor Documentation

Contribution() [1/2]

Contribution::Contribution

(

)

Default constructor - creates an empty contribution set.

Definition at line 5 of file contribution.cpp.

Contribution() [2/2]

Contribution::Contribution

(

const Contribution &

rhs

)

Copy constructor.

Parameters

rhs	Contribution object to copy from

Definition at line 10 of file contribution.cpp.

Member Function Documentation

operator=()

Contribution & Contribution::operator=

(

const Contribution &

rhs

)

Assignment operator.

Parameters

rhs	Contribution object to assign from

Returns

Reference to this contribution object

Definition at line 14 of file contribution.cpp.

References Interface::operator=().

Read()

bool Contribution::Read ( const QStringList &  strlist )

overridevirtual

Reads contributions from string list.

Expected format: Each string is "source_name:contribution_value"

Parameters

strlist

List of colon-separated source:value strings

Returns

true if successful

Reimplemented from Interface.

Definition at line 37 of file contribution.cpp.

ReadFromJsonObject()

bool Contribution::ReadFromJsonObject ( const QJsonObject &  jsonobject )

overridevirtual

Deserializes contributions from JSON format.

Parameters

jsonobject

JSON object to read from

Returns

true if successful, false otherwise

Reimplemented from Interface.

Definition at line 60 of file contribution.cpp.

toJsonObject()

QJsonObject Contribution::toJsonObject ( ) const

overridevirtual

Serializes contributions to JSON format.

Returns

JSON object with source names as keys and contributions as values

Reimplemented from Interface.

Definition at line 50 of file contribution.cpp.

ToString()

string Contribution::ToString ( ) const

overridevirtual

Converts contributions to colon-separated string format.

Format: "source_name:contribution_value\n" for each source

Returns

String representation with one source per line

Reimplemented from Interface.

Definition at line 21 of file contribution.cpp.

Referenced by writetofile().

ToTable()

QTableWidget * Contribution::ToTable ( )

overridevirtual

Creates a QTableWidget for displaying contributions.

Generates a read-only single-column table with source names as row labels and contribution values in the column.

Returns

Pointer to newly created QTableWidget (caller takes ownership)

Reimplemented from Interface.

Definition at line 70 of file contribution.cpp.

writetofile()

bool Contribution::writetofile ( QFile *  file )

overridevirtual

Writes contributions to file.

Parameters

file	File pointer to write to

Returns

true if successful

Reimplemented from Interface.

Definition at line 31 of file contribution.cpp.

References ToString().

---

The documentation for this class was generated from the following files:

• contribution.h
• contribution.cpp
