Collection of named CMBVectorSet objects for hierarchical data organization. More...

#include </home/runner/work/SedSat3/SedSat3/cmbvectorsetset.h>

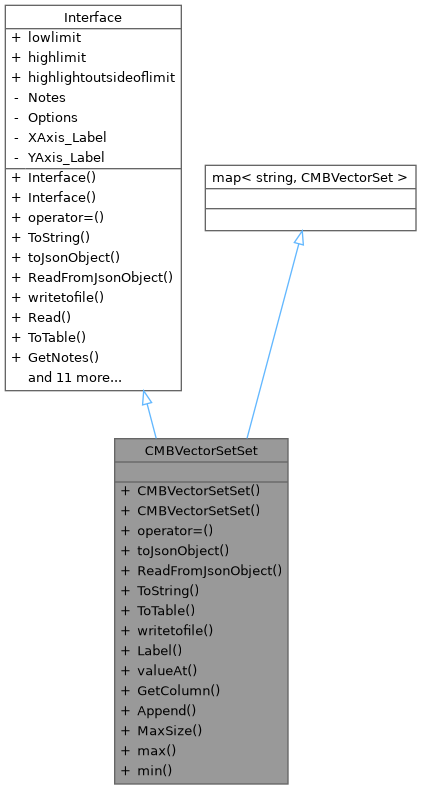

Inheritance diagram for CMBVectorSetSet:

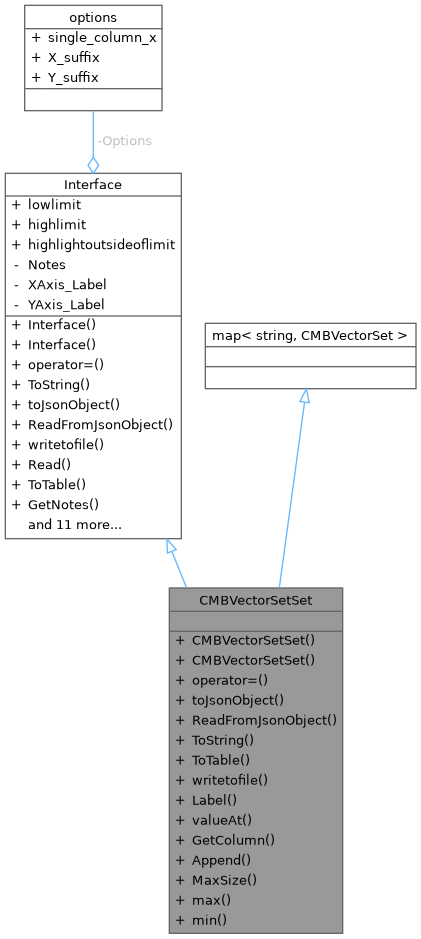

Collaboration diagram for CMBVectorSetSet:

Public Member Functions
	CMBVectorSetSet ()
	Default constructor - creates an empty vector set set.

	CMBVectorSetSet (const CMBVectorSetSet &mp)
	Copy constructor.

CMBVectorSetSet &	operator= (const CMBVectorSetSet &mp)
	Assignment operator.

QJsonObject	toJsonObject () const override
	Serializes vector set set to JSON format.

bool	ReadFromJsonObject (const QJsonObject &jsonobject) override
	Deserializes vector set set from JSON format.

string	ToString () const override
	Converts vector set set to string representation.

QTableWidget *	ToTable () override
	Creates a QTableWidget for displaying vector set set data.

bool	writetofile (QFile *file) override
	Writes vector set set to file.

string	Label (const string &vectorset, const string &column, int j) const
	Gets label at specified position in a column within a vector set.

double	valueAt (const string &vectorset, const string &columnlabel, int j) const
	Gets value at specified position in a column within a vector set.

CMBVector &	GetColumn (const string &vectorset, const string &columnlabel)
	Gets reference to a named column vector within a vector set.

void	Append (const string &columnlabel, const CMBVectorSet &vectorset)
	Adds or replaces a vector set in the collection.

unsigned int	MaxSize () const
	Finds the maximum size among all vectors in all sets.

double	max () const
	Finds the maximum value across all vectors in all sets.

double	min () const
	Finds the minimum value across all vectors in all sets.

Public Member Functions inherited from Interface
	Interface ()
	Default constructor.

	Interface (const Interface &intf)
	Copy constructor.

Interface &	operator= (const Interface &intf)
	Assignment operator.

virtual bool	Read (const QStringList &strlist)
	Parse object data from a string list.

string	GetNotes () const
	Get the notes/annotations associated with this object.

void	SetNotes (const string &note)
	Set the notes for this object, replacing any existing notes.

void	AppendtoNotes (const string &note)
	Append a note to existing notes.

void	ClearNotes ()
	Clear all notes associated with this object.

void	SetLimit (_range lowhigh, const double &value)
	Set upper or lower limit for value highlighting.

void	SetOption (options_key opt, bool val)
	Set a configuration option.

bool	Option (options_key opt)
	Get the current value of a configuration option.

options &	GetOptions ()
	Get reference to the options structure.

QString	XAxisLabel () const
	Get the X-axis label.

QString	YAxisLabel () const
	Get the Y-axis label.

bool	SetXAxisLabel (const QString &label)
	Set the X-axis label.

bool	SetYAxisLabel (const QString &label)
	Set the Y-axis label.

Additional Inherited Members
Public Attributes inherited from Interface
double	lowlimit
	Lower threshold for value highlighting (when enabled)

double	highlimit
	Upper threshold for value highlighting (when enabled)

bool	highlightoutsideoflimit = false
	Flag indicating whether to highlight values outside defined limits.

Detailed Description

Collection of named CMBVectorSet objects for hierarchical data organization.

Manages a two-level hierarchy of vectors: sets of vector sets. Provides JSON serialization and table generation for complex multi-group, multi-variable datasets. Commonly used for organizing discriminant function analysis results across multiple discriminant axes.

Definition at line 17 of file cmbvectorsetset.h.

Constructor & Destructor Documentation

◆ CMBVectorSetSet() [1/2]

CMBVectorSetSet::CMBVectorSetSet ( )

Default constructor - creates an empty vector set set.

Definition at line 5 of file cmbvectorsetset.cpp.

◆ CMBVectorSetSet() [2/2]

CMBVectorSetSet::CMBVectorSetSet ( const CMBVectorSetSet & mp )

Copy constructor.

Parameters

mp	Vector set set to copy from

Definition at line 9 of file cmbvectorsetset.cpp.

Member Function Documentation

◆ Append()

void CMBVectorSetSet::Append	(	const string &	columnlabel,
		const CMBVectorSet &	vectorset
	)

Adds or replaces a vector set in the collection.

Parameters

columnlabel	Name for the vector set
vectorset	Vector set to add

Definition at line 134 of file cmbvectorsetset.cpp.

References vectorset.

Referenced by SourceSinkData::DiscriminantFunctionAnalysis().

◆ GetColumn()

CMBVector & CMBVectorSetSet::GetColumn	(	const string &	vectorset,
		const string &	columnlabel
	)

Gets reference to a named column vector within a vector set.

Parameters

vectorset	Name of the vector set
columnlabel	Name of the vector column

Returns: Reference to the CMBVector

Definition at line 130 of file cmbvectorsetset.cpp.

References vectorset.

◆ Label()

string CMBVectorSetSet::Label	(	const string &	vectorset,
		const string &	column,
		int	j
	)		const

Gets label at specified position in a column within a vector set.

Parameters

vectorset	Name of the vector set
column	Name of the vector column within the set
j	Index within the column

Returns: Label string, or empty string if not found

Definition at line 116 of file cmbvectorsetset.cpp.

References Label(), and vectorset.

Referenced by Label().

◆ max()

double CMBVectorSetSet::max ( ) const

Finds the maximum value across all vectors in all sets.

Returns: Maximum value found

Definition at line 60 of file cmbvectorsetset.cpp.

◆ MaxSize()

unsigned int CMBVectorSetSet::MaxSize ( ) const

Finds the maximum size among all vectors in all sets.

Returns: Maximum number of elements in any vector

Definition at line 49 of file cmbvectorsetset.cpp.

Referenced by ToTable().

◆ min()

double CMBVectorSetSet::min ( ) const

Finds the minimum value across all vectors in all sets.

Returns: Minimum value found

Definition at line 69 of file cmbvectorsetset.cpp.

◆ operator=()

CMBVectorSetSet & CMBVectorSetSet::operator= ( const CMBVectorSetSet & mp )

Assignment operator.

Parameters

mp	Vector set set to assign from

Returns: Reference to this vector set set

Definition at line 13 of file cmbvectorsetset.cpp.

References Interface::operator=().

◆ ReadFromJsonObject()

bool CMBVectorSetSet::ReadFromJsonObject ( const QJsonObject & jsonobject )

overridevirtual

Deserializes vector set set from JSON format.

Parameters

jsonobject JSON object to read from

Returns: true if successful, false otherwise

Reimplemented from Interface.

Definition at line 28 of file cmbvectorsetset.cpp.

References CMBVectorSet::ReadFromJsonObject().

Referenced by Results::ReadFromJson().

◆ toJsonObject()

QJsonObject CMBVectorSetSet::toJsonObject ( ) const

overridevirtual

Serializes vector set set to JSON format.

Returns: JSON object containing all vector sets with their names as keys

Reimplemented from Interface.

Definition at line 19 of file cmbvectorsetset.cpp.

◆ ToString()

string CMBVectorSetSet::ToString ( ) const

overridevirtual

Converts vector set set to string representation.

Returns: String containing all vector sets with their names

Reimplemented from Interface.

Definition at line 37 of file cmbvectorsetset.cpp.

References CMBVectorSet::ToString().

Referenced by writetofile().

◆ ToTable()

QTableWidget * CMBVectorSetSet::ToTable ( )

overridevirtual

Creates a QTableWidget for displaying vector set set data.

Generates a table with column pairs for each vector in each set, with hierarchical column headers.

Returns: Pointer to newly created QTableWidget (caller takes ownership)

Reimplemented from Interface.

Definition at line 80 of file cmbvectorsetset.cpp.

References MaxSize(), and vectorset.

◆ valueAt()

double CMBVectorSetSet::valueAt	(	const string &	vectorset,
		const string &	columnlabel,
		int	j
	)		const

Gets value at specified position in a column within a vector set.

Parameters

vectorset	Name of the vector set
columnlabel	Name of the vector column within the set
j	Index within the column

Returns: Value at position j, or 0 if not found

Definition at line 123 of file cmbvectorsetset.cpp.

References valueAt(), and vectorset.

Referenced by valueAt().

◆ writetofile()

bool CMBVectorSetSet::writetofile ( QFile * file )

overridevirtual

Writes vector set set to file.

Parameters

file	File pointer to write to

Returns: true if successful

Reimplemented from Interface.

Definition at line 110 of file cmbvectorsetset.cpp.

References ToString().
