Matrix class with labeled rows and columns for Chemical Mass Balance analysis. More...

#include </home/runner/work/SedSat3/SedSat3/cmbmatrix.h>

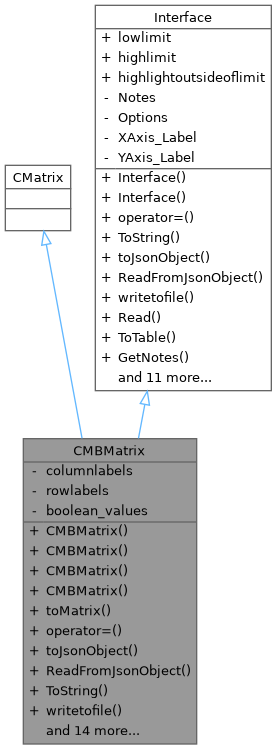

Inheritance diagram for CMBMatrix:

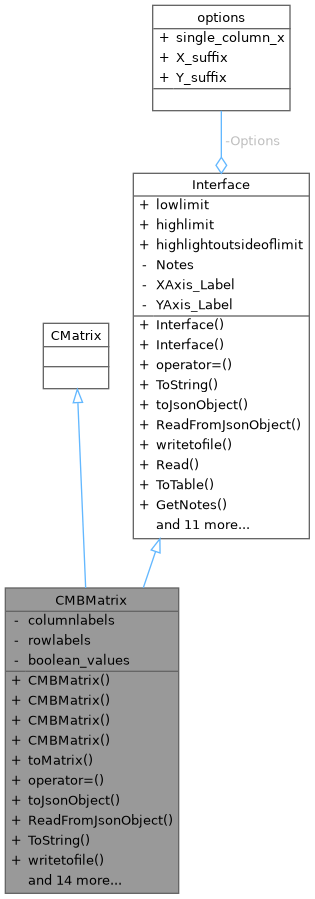

Collaboration diagram for CMBMatrix:

Public Member Functions
	CMBMatrix ()
	Default constructor - creates an empty matrix.

	CMBMatrix (int n)
	Constructs a square matrix with given dimension.

	CMBMatrix (int n, int m)
	Constructs a rectangular matrix with given dimensions.

	CMBMatrix (const CMBMatrix &mp)
	Copy constructor.

CMatrix	toMatrix () const
	Converts to base CMatrix type (without labels)

CMBMatrix &	operator= (const CMBMatrix &mp)
	Assignment operator.

QJsonObject	toJsonObject () const override
	Serializes matrix to JSON format.

bool	ReadFromJsonObject (const QJsonObject &jsonobject) override
	Deserializes matrix from JSON format.

string	ToString () const override
	Converts matrix to CSV-formatted string.

bool	writetofile (QFile *file) override
	Writes matrix to file in CSV format.

double	valueAt (int i, int j) const
	Gets value at specified matrix position.

string	ColumnLabel (int i)
	Gets column label at specified index.

string	RowLabel (int i)
	Gets row label at specified index.

void	SetColumnLabel (int i, const string &label)
	Sets column label at specified index.

void	SetRowLabel (int i, const string &label)
	Sets row label at specified index.

void	SetColumnLabels (const vector< string > &label)
	Sets all column labels at once.

void	SetRowLabels (const vector< string > &label)
	Sets all row labels at once.

QTableWidget *	ToTable () override
	Creates a QTableWidget for displaying matrix data.

vector< string >	RowLabels () const
	Gets all row labels.

vector< string >	ColumnLabels () const
	Gets all column labels.

CMBVector	GetRow (const string &rowlabel)
	Extracts a row by its label.

CMBVector	GetColumn (const string &columnlabel)
	Extracts a column by its label.

QStringList	RowLabelCategories ()
	Gets unique row label categories.

void	SetBooleanValue (bool val)
	Sets boolean display mode for table widget.

Public Member Functions inherited from Interface
	Interface ()
	Default constructor.

	Interface (const Interface &intf)
	Copy constructor.

Interface &	operator= (const Interface &intf)
	Assignment operator.

virtual bool	Read (const QStringList &strlist)
	Parse object data from a string list.

string	GetNotes () const
	Get the notes/annotations associated with this object.

void	SetNotes (const string &note)
	Set the notes for this object, replacing any existing notes.

void	AppendtoNotes (const string &note)
	Append a note to existing notes.

void	ClearNotes ()
	Clear all notes associated with this object.

void	SetLimit (_range lowhigh, const double &value)
	Set upper or lower limit for value highlighting.

void	SetOption (options_key opt, bool val)
	Set a configuration option.

bool	Option (options_key opt)
	Get the current value of a configuration option.

options &	GetOptions ()
	Get reference to the options structure.

QString	XAxisLabel () const
	Get the X-axis label.

QString	YAxisLabel () const
	Get the Y-axis label.

bool	SetXAxisLabel (const QString &label)
	Set the X-axis label.

bool	SetYAxisLabel (const QString &label)
	Set the Y-axis label.

Private Attributes
vector< string >	columnlabels
	Labels for each column.

vector< string >	rowlabels
	Labels for each row.

bool	boolean_values = false
	Display values as Pass/Fail instead of numbers.

Additional Inherited Members
Public Attributes inherited from Interface
double	lowlimit
	Lower threshold for value highlighting (when enabled)

double	highlimit
	Upper threshold for value highlighting (when enabled)

bool	highlightoutsideoflimit = false
	Flag indicating whether to highlight values outside defined limits.

Detailed Description

Matrix class with labeled rows and columns for Chemical Mass Balance analysis.

Extends CMatrix with string labels for rows and columns, JSON serialization, table widget generation, and specialized operations for CMB calculations. Inherits from both CMatrix (for mathematical operations) and Interface (for I/O and visualization).

Definition at line 18 of file cmbmatrix.h.

Constructor & Destructor Documentation

◆ CMBMatrix() [1/4]

CMBMatrix::CMBMatrix ( )

Default constructor - creates an empty matrix.

Definition at line 6 of file cmbmatrix.cpp.

◆ CMBMatrix() [2/4]

CMBMatrix::CMBMatrix ( int n )

Constructs a square matrix with given dimension.

Parameters

n	Number of rows and columns

Definition at line 20 of file cmbmatrix.cpp.

References columnlabels, and rowlabels.

◆ CMBMatrix() [3/4]

CMBMatrix::CMBMatrix	(	int	n,
		int	m
	)

Constructs a rectangular matrix with given dimensions.

Parameters

n	Number of columns
m	Number of rows

Definition at line 25 of file cmbmatrix.cpp.

References columnlabels, and rowlabels.

◆ CMBMatrix() [4/4]

CMBMatrix::CMBMatrix ( const CMBMatrix & mp )

Copy constructor.

Parameters

mp	Matrix to copy from

Definition at line 11 of file cmbmatrix.cpp.

References columnlabels, Interface::highlightoutsideoflimit, Interface::highlimit, Interface::lowlimit, and rowlabels.

Member Function Documentation

◆ ColumnLabel()

string CMBMatrix::ColumnLabel ( int i )

inline

Gets column label at specified index.

Parameters

i	Column index

Returns: Column label string

Definition at line 97 of file cmbmatrix.h.

References columnlabels.

◆ ColumnLabels()

vector< string > CMBMatrix::ColumnLabels ( ) const

inline

Gets all column labels.

Returns: Vector of column label strings

Definition at line 153 of file cmbmatrix.h.

References columnlabels.

Referenced by GetRow().

◆ GetColumn()

CMBVector CMBMatrix::GetColumn ( const string & columnlabel )

Extracts a column by its label.

Parameters

columnlabel Label of the column to extract

Returns: CMBVector containing the column values with row labels

Definition at line 218 of file cmbmatrix.cpp.

References columnlabels, RowLabels(), and CMBVector::SetLabels().

◆ GetRow()

CMBVector CMBMatrix::GetRow ( const string & rowlabel )

Extracts a row by its label.

Parameters

rowlabel Label of the row to extract

Returns: CMBVector containing the row values with column labels

Definition at line 204 of file cmbmatrix.cpp.

References ColumnLabels(), rowlabels, and CMBVector::SetLabels().

◆ operator=()

CMBMatrix & CMBMatrix::operator= ( const CMBMatrix & mp )

Assignment operator.

Parameters

mp	Matrix to assign from

Returns: Reference to this matrix

Definition at line 31 of file cmbmatrix.cpp.

References columnlabels, Interface::highlightoutsideoflimit, Interface::highlimit, Interface::lowlimit, and rowlabels.

◆ ReadFromJsonObject()

bool CMBMatrix::ReadFromJsonObject ( const QJsonObject & jsonobject )

overridevirtual

Deserializes matrix from JSON format.

Parameters

jsonobject JSON object to read from

Returns: true if successful, false otherwise

Reimplemented from Interface.

Definition at line 67 of file cmbmatrix.cpp.

References columnlabels, and rowlabels.

Referenced by Results::ReadFromJson().

◆ RowLabel()

string CMBMatrix::RowLabel ( int i )

inline

Gets row label at specified index.

Parameters

i Row index

Returns: Row label string

Definition at line 104 of file cmbmatrix.h.

References rowlabels.

◆ RowLabelCategories()

QStringList CMBMatrix::RowLabelCategories ( )

Gets unique row label categories.

Returns: QStringList of unique row labels (no duplicates)

Definition at line 233 of file cmbmatrix.cpp.

References rowlabels.

◆ RowLabels()

vector< string > CMBMatrix::RowLabels ( ) const

inline

Gets all row labels.

Returns: Vector of row label strings

Definition at line 147 of file cmbmatrix.h.

References rowlabels.

Referenced by GetColumn(), and operator*().

◆ SetBooleanValue()

void CMBMatrix::SetBooleanValue ( bool val )

inline

Sets boolean display mode for table widget.

When true, matrix values are displayed as "Pass" (0) or "Fail" (1) in the table widget instead of numeric values.

Parameters

val	True to enable boolean display mode

Definition at line 183 of file cmbmatrix.h.

References boolean_values.

Referenced by Conductor::ExecuteBracketingAnalysisBatch(), and Results::ReadFromJson().

◆ SetColumnLabel()

void CMBMatrix::SetColumnLabel	(	int	i,
		const string &	label
	)

inline

Sets column label at specified index.

Parameters

i	Column index
label	Label string to set

Definition at line 111 of file cmbmatrix.h.

References columnlabels.

Referenced by SourceSinkData::BracketTest(), Elemental_Profile_Set::CalculateCorrelationMatrix(), Elemental_Profile_Set::CalculateCovarianceMatrix(), Elemental_Profile_Set::DetectOutliers(), and SourceSinkData::MCMC_Batch().

◆ SetColumnLabels()

void CMBMatrix::SetColumnLabels ( const vector< string > & label )

inline

Sets all column labels at once.

Parameters

label Vector of label strings

Definition at line 124 of file cmbmatrix.h.

References columnlabels.

◆ SetRowLabel()

void CMBMatrix::SetRowLabel	(	int	i,
		const string &	label
	)

inline

Sets row label at specified index.

Parameters

i	Row index
label	Label string to set

Definition at line 118 of file cmbmatrix.h.

References rowlabels.

Referenced by SourceSinkData::BracketTest(), Elemental_Profile_Set::CalculateCorrelationMatrix(), Elemental_Profile_Set::CalculateCovarianceMatrix(), Elemental_Profile_Set::DetectOutliers(), and SourceSinkData::MCMC_Batch().

◆ SetRowLabels()

void CMBMatrix::SetRowLabels ( const vector< string > & label )

inline

Sets all row labels at once.

Parameters

label Vector of label strings

Definition at line 130 of file cmbmatrix.h.

References rowlabels.

◆ toJsonObject()

QJsonObject CMBMatrix::toJsonObject ( ) const

overridevirtual

Serializes matrix to JSON format.

Returns: JSON object containing matrix data, row labels, and column labels

Reimplemented from Interface.

Definition at line 41 of file cmbmatrix.cpp.

References columnlabels, matrix, rowlabels, and valueAt().

◆ toMatrix()

CMatrix CMBMatrix::toMatrix ( ) const

Converts to base CMatrix type (without labels)

Returns: CMatrix representation

Definition at line 197 of file cmbmatrix.cpp.

Referenced by operator*().

◆ ToString()

string CMBMatrix::ToString ( ) const

overridevirtual

Converts matrix to CSV-formatted string.

Returns: String representation with labels and comma-separated values

Reimplemented from Interface.

Definition at line 101 of file cmbmatrix.cpp.

References columnlabels, rowlabels, and valueAt().

Referenced by writetofile().

◆ ToTable()

QTableWidget * CMBMatrix::ToTable ( )

overridevirtual

Creates a QTableWidget for displaying matrix data.

Generates a read-only table widget with labeled rows and columns. Highlights cells outside limit range if highlighting is enabled. Displays boolean values as "Pass"/"Fail" if boolean mode is set.

Returns: Pointer to newly created QTableWidget (caller takes ownership)

Reimplemented from Interface.

Definition at line 122 of file cmbmatrix.cpp.

References boolean_values, columnlabels, Interface::highlightoutsideoflimit, Interface::highlimit, Interface::lowlimit, and rowlabels.

◆ valueAt()

double CMBMatrix::valueAt	(	int	i,
		int	j
	)		const

Gets value at specified matrix position.

Parameters

i	Row index
j	Column index

Returns: Matrix value at position (i,j)

Definition at line 184 of file cmbmatrix.cpp.

Referenced by toJsonObject(), and ToString().

◆ writetofile()

bool CMBMatrix::writetofile ( QFile * file )

overridevirtual

Writes matrix to file in CSV format.

Parameters

file	File pointer to write to

Returns: true if successful

Reimplemented from Interface.

Definition at line 96 of file cmbmatrix.cpp.

References ToString().

Member Data Documentation

◆ boolean_values

bool CMBMatrix::boolean_values = false

private

Display values as Pass/Fail instead of numbers.

Definition at line 188 of file cmbmatrix.h.

Referenced by SetBooleanValue(), and ToTable().

◆ columnlabels

vector<string> CMBMatrix::columnlabels

private

Labels for each column.

Definition at line 186 of file cmbmatrix.h.

Referenced by CMBMatrix(), CMBMatrix(), CMBMatrix(), ColumnLabel(), ColumnLabels(), GetColumn(), operator=(), ReadFromJsonObject(), SetColumnLabel(), SetColumnLabels(), toJsonObject(), ToString(), and ToTable().

◆ rowlabels

vector<string> CMBMatrix::rowlabels

private

Labels for each row.

Definition at line 187 of file cmbmatrix.h.

Referenced by CMBMatrix(), CMBMatrix(), CMBMatrix(), GetRow(), operator=(), ReadFromJsonObject(), RowLabel(), RowLabelCategories(), RowLabels(), SetRowLabel(), SetRowLabels(), toJsonObject(), ToString(), and ToTable().

The documentation for this class was generated from the following files:

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CMBMatrix() [1/4]

◆ CMBMatrix() [2/4]

◆ CMBMatrix() [3/4]

◆ CMBMatrix() [4/4]

Member Function Documentation

◆ ColumnLabel()

◆ ColumnLabels()

◆ GetColumn()

◆ GetRow()

◆ operator=()

◆ ReadFromJsonObject()

◆ RowLabel()

◆ RowLabelCategories()

◆ RowLabels()

◆ SetBooleanValue()

◆ SetColumnLabel()

◆ SetColumnLabels()

◆ SetRowLabel()

◆ SetRowLabels()

◆ toJsonObject()

◆ toMatrix()

◆ ToString()

◆ ToTable()

◆ valueAt()

◆ writetofile()

Member Data Documentation

◆ boolean_values

◆ columnlabels

◆ rowlabels
