#include </home/runner/work/SedSat3/SedSat3/resultitem.h>

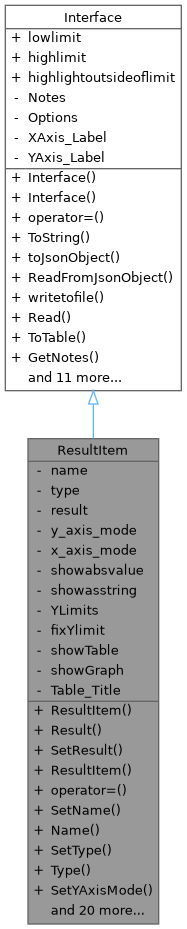

Inheritance diagram for ResultItem:

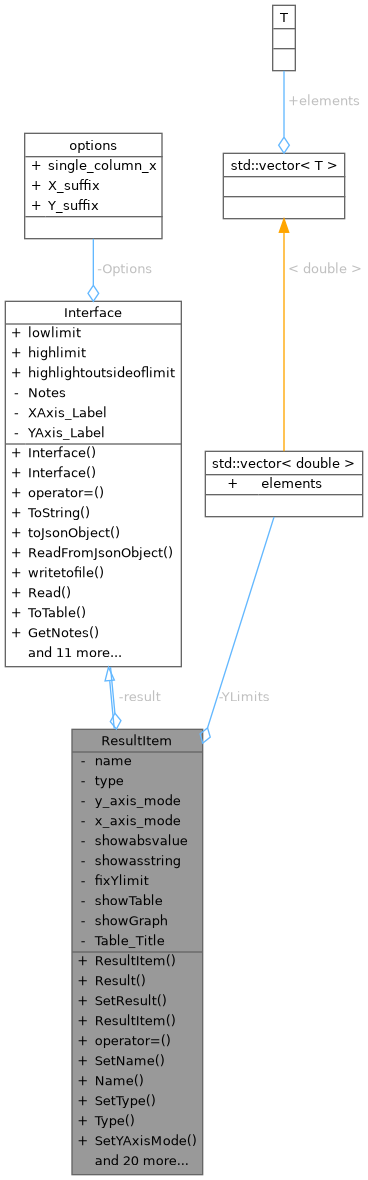

Collaboration diagram for ResultItem:

Public Member Functions
	ResultItem ()

Interface *	Result () const

void	SetResult (Interface *_result)

	ResultItem (const ResultItem &rhs)

ResultItem &	operator= (const ResultItem &rhs)

void	SetName (const string &_name)

string	Name () const

void	SetType (const result_type &_type)

result_type	Type () const

void	SetYAxisMode (yaxis_mode mode)

void	SetXAxisMode (xaxis_mode mode)

yaxis_mode	YAxisMode ()

xaxis_mode	XAxisMode ()

void	SetShowAsString (bool value)

bool	ShowAsString () const

void	setXAxisTitle (const string &title)

void	setYAxisTitle (const string &title)

void	setTableTitle (const string &Title)

string	TableTitle ()

string	XAxisTitle ()

string	YAxisTitle ()

void	SetAbsoluteValue (bool val)

bool	AbsValue ()

double	YLimit (_range highlow)

void	SetYLimit (_range highlow, const double &value)

bool	FixedYLimit ()

void	SetShowTable (bool state)

bool	ShowTable () const

void	SetShowGraph (bool state)

bool	ShowGraph () const

Public Member Functions inherited from Interface
	Interface ()
	Default constructor.

	Interface (const Interface &intf)
	Copy constructor.

Interface &	operator= (const Interface &intf)
	Assignment operator.

virtual string	ToString () const
	Convert object to string representation.

virtual QJsonObject	toJsonObject () const
	Serialize object to JSON format.

virtual bool	ReadFromJsonObject (const QJsonObject &jsonobject)
	Deserialize object from JSON format.

virtual bool	writetofile (QFile *file)
	Write object data to a file.

virtual bool	Read (const QStringList &strlist)
	Parse object data from a string list.

virtual QTableWidget *	ToTable ()
	Create a Qt table widget representation of the data.

string	GetNotes () const
	Get the notes/annotations associated with this object.

void	SetNotes (const string &note)
	Set the notes for this object, replacing any existing notes.

void	AppendtoNotes (const string &note)
	Append a note to existing notes.

void	ClearNotes ()
	Clear all notes associated with this object.

void	SetLimit (_range lowhigh, const double &value)
	Set upper or lower limit for value highlighting.

void	SetOption (options_key opt, bool val)
	Set a configuration option.

bool	Option (options_key opt)
	Get the current value of a configuration option.

options &	GetOptions ()
	Get reference to the options structure.

QString	XAxisLabel () const
	Get the X-axis label.

QString	YAxisLabel () const
	Get the Y-axis label.

bool	SetXAxisLabel (const QString &label)
	Set the X-axis label.

bool	SetYAxisLabel (const QString &label)
	Set the Y-axis label.

Private Attributes
string	name

result_type	type

Interface *	result = nullptr

yaxis_mode	y_axis_mode = yaxis_mode::log

xaxis_mode	x_axis_mode = xaxis_mode::real

bool	showabsvalue = false

bool	showasstring = true

vector< double >	YLimits

bool	fixYlimit = false

bool	showTable = false

bool	showGraph = true

string	Table_Title

Additional Inherited Members
Public Attributes inherited from Interface
double	lowlimit
	Lower threshold for value highlighting (when enabled)

double	highlimit
	Upper threshold for value highlighting (when enabled)

bool	highlightoutsideoflimit = false
	Flag indicating whether to highlight values outside defined limits.
