Graphical ProgressReporter that draws progress as charts in a dialog. More...

#include </home/runner/work/SedSat3/SedSat3/ProgressWindow.h>

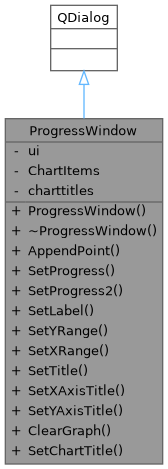

Inheritance diagram for ProgressWindow:

Collaboration diagram for ProgressWindow:

Public Member Functions
	ProgressWindow (QWidget *parent=Q_NULLPTR, int number_of_panels=1, bool extra_label_and_progressbar=false)

	~ProgressWindow ()

void	AppendPoint (const double &x, const double &y, int chart=0) override
	Adds a point to one of the progress charts.

void	SetProgress (const double &prog) override
	Sets the primary progress fraction.

void	SetProgress2 (const double &prog) override
	Sets the secondary progress fraction, where one is displayed.

void	SetLabel (const QString &label) override
	Sets the free-text status label.

void	SetYRange (const double &y0, const double &y1, int chart=0) override
	Sets the vertical range of a chart.

void	SetXRange (const double &x0, const double &x1, int chart=0) override
	Sets the horizontal range of a chart.

void	SetTitle (const QString &title, int chart=0) override
	Sets the title of a chart.

void	SetXAxisTitle (const QString &title, int chart=0) override
	Sets the horizontal axis title of a chart.

void	SetYAxisTitle (const QString &title, int chart=0) override
	Sets the vertical axis title of a chart.

void	ClearGraph (int chart=0) override
	Discards the points accumulated in a chart.

void	SetChartTitle (int i, const QString &title) override
	Sets the title of chart `i`.

void	Start () override
	Shows the dialog. Named Start() because QWidget::show() is not virtual.

void	Finish () override
	Closes the dialog. Named Finish() because QWidget::close() is not virtual.

Public Member Functions inherited from ProgressReporter
virtual	~ProgressReporter ()=default

Private Attributes
Ui::ProgressWindow	ui

QVector< ChartCollection >	ChartItems

QVector< QString >	charttitles

Detailed Description

Graphical ProgressReporter that draws progress as charts in a dialog.

QDialog is listed first because Qt requires the QObject-derived base to come first in the base list of a class using Q_OBJECT.

Definition at line 36 of file ProgressWindow.h.

Constructor & Destructor Documentation

◆ ProgressWindow()

ProgressWindow::ProgressWindow	(	QWidget *	parent = `Q_NULLPTR`,
		int	number_of_panels = `1`,
		bool	extra_label_and_progressbar = `false`
	)

Definition at line 5 of file ProgressWindow.cpp.

References ChartItems, charttitles, and ui.

◆ ~ProgressWindow()

ProgressWindow::~ProgressWindow ( )

Definition at line 65 of file ProgressWindow.cpp.

Member Function Documentation

◆ AppendPoint()

void ProgressWindow::AppendPoint	(	const double &	x,
		const double &	y,
		int	chart = `0`
	)

overridevirtual

Adds a point to one of the progress charts.

Parameters

x	Horizontal coordinate, typically an iteration or generation number
y	Vertical coordinate, typically a fitness or likelihood value
chart	Index of the chart to append to

Implements ProgressReporter.

Definition at line 69 of file ProgressWindow.cpp.

References ChartItems, x, and y.

◆ ClearGraph()

void ProgressWindow::ClearGraph ( int chart = 0 )

overridevirtual

Discards the points accumulated in a chart.

Implements ProgressReporter.

Definition at line 89 of file ProgressWindow.cpp.

References ChartItems.

◆ Finish()

void ProgressWindow::Finish ( )

inlineoverridevirtual

Closes the dialog. Named Finish() because QWidget::close() is not virtual.

Reimplemented from ProgressReporter.

Definition at line 65 of file ProgressWindow.h.

◆ SetChartTitle()

void ProgressWindow::SetChartTitle	(	int	i,
		const QString &	title
	)

inlineoverridevirtual

Sets the title of chart i.

Implements ProgressReporter.

Definition at line 53 of file ProgressWindow.h.

References ChartItems, and charttitles.

◆ SetLabel()

void ProgressWindow::SetLabel ( const QString & label )

overridevirtual

Sets the free-text status label.

Implements ProgressReporter.

Definition at line 106 of file ProgressWindow.cpp.

References ui.

◆ SetProgress()

void ProgressWindow::SetProgress ( const double & prog )

overridevirtual

Sets the primary progress fraction.

Parameters

prog	Progress in the range [0,1]

Implements ProgressReporter.

Definition at line 94 of file ProgressWindow.cpp.

References ui.

◆ SetProgress2()

void ProgressWindow::SetProgress2 ( const double & prog )

overridevirtual

Sets the secondary progress fraction, where one is displayed.

Parameters

prog	Progress in the range [0,1]

Implements ProgressReporter.

Definition at line 100 of file ProgressWindow.cpp.

References ui.

◆ SetTitle()

void ProgressWindow::SetTitle	(	const QString &	title,
		int	chart = `0`
	)

overridevirtual

Sets the title of a chart.

Implements ProgressReporter.

Definition at line 60 of file ProgressWindow.cpp.

References ChartItems.

◆ SetXAxisTitle()

void ProgressWindow::SetXAxisTitle	(	const QString &	title,
		int	chart = `0`
	)

overridevirtual

Sets the horizontal axis title of a chart.

Implements ProgressReporter.

Definition at line 129 of file ProgressWindow.cpp.

References ChartItems.

◆ SetXRange()

void ProgressWindow::SetXRange	(	const double &	x0,
		const double &	x1,
		int	chart = `0`
	)

overridevirtual

Sets the horizontal range of a chart.

Implements ProgressReporter.

Definition at line 121 of file ProgressWindow.cpp.

References ChartItems.

◆ SetYAxisTitle()

void ProgressWindow::SetYAxisTitle	(	const QString &	title,
		int	chart = `0`
	)

overridevirtual

Sets the vertical axis title of a chart.

Implements ProgressReporter.

Definition at line 133 of file ProgressWindow.cpp.

References ChartItems.

◆ SetYRange()

void ProgressWindow::SetYRange	(	const double &	y0,
		const double &	y1,
		int	chart = `0`
	)

overridevirtual

Sets the vertical range of a chart.

Implements ProgressReporter.

Definition at line 113 of file ProgressWindow.cpp.

References ChartItems.

◆ Start()

void ProgressWindow::Start ( )

inlineoverridevirtual

Shows the dialog. Named Start() because QWidget::show() is not virtual.

Reimplemented from ProgressReporter.

Definition at line 62 of file ProgressWindow.h.

Member Data Documentation

◆ ChartItems

QVector<ChartCollection> ProgressWindow::ChartItems

private

Definition at line 68 of file ProgressWindow.h.

Referenced by ProgressWindow(), AppendPoint(), ClearGraph(), SetChartTitle(), SetTitle(), SetXAxisTitle(), SetXRange(), SetYAxisTitle(), and SetYRange().

◆ charttitles

QVector<QString> ProgressWindow::charttitles

private

Definition at line 69 of file ProgressWindow.h.

Referenced by ProgressWindow(), and SetChartTitle().

◆ ui

Ui::ProgressWindow ProgressWindow::ui

private

Definition at line 67 of file ProgressWindow.h.

Referenced by ProgressWindow(), SetLabel(), SetProgress(), and SetProgress2().

The documentation for this class was generated from the following files:
