Abstract sink for progress information produced by a running analysis. More...

#include <progressreporter.h>

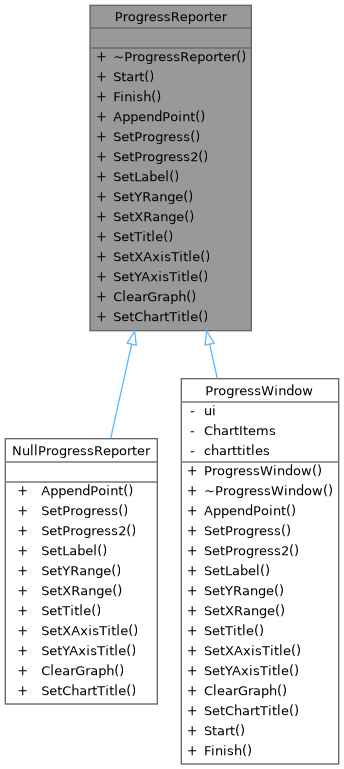

Inheritance diagram for ProgressReporter:

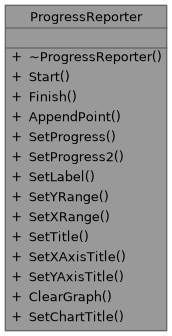

Collaboration diagram for ProgressReporter:

Public Member Functions
virtual	~ProgressReporter ()=default

virtual void	Start ()
	Makes the reporter visible or otherwise begins reporting.

virtual void	Finish ()
	Ends reporting.

virtual void	AppendPoint (const double &x, const double &y, int chart=0)=0
	Adds a point to one of the progress charts.

virtual void	SetProgress (const double &prog)=0
	Sets the primary progress fraction.

virtual void	SetProgress2 (const double &prog)=0
	Sets the secondary progress fraction, where one is displayed.

virtual void	SetLabel (const QString &label)=0
	Sets the free-text status label.

virtual void	SetYRange (const double &y0, const double &y1, int chart=0)=0
	Sets the vertical range of a chart.

virtual void	SetXRange (const double &x0, const double &x1, int chart=0)=0
	Sets the horizontal range of a chart.

virtual void	SetTitle (const QString &title, int chart=0)=0
	Sets the title of a chart.

virtual void	SetXAxisTitle (const QString &title, int chart=0)=0
	Sets the horizontal axis title of a chart.

virtual void	SetYAxisTitle (const QString &title, int chart=0)=0
	Sets the vertical axis title of a chart.

virtual void	ClearGraph (int chart=0)=0
	Discards the points accumulated in a chart.

virtual void	SetChartTitle (int i, const QString &title)=0
	Sets the title of chart `i`.

Detailed Description

Abstract sink for progress information produced by a running analysis.

The long-running algorithms (genetic algorithm, MCMC, distribution fitting, the batch analyses) report their progress as they go. In the graphical application that progress is drawn in a ProgressWindow; in the command line application it is written to the console or discarded. Neither the algorithms nor the Conductor should care which, so both report through this interface.

The method set mirrors the ProgressWindow API that the algorithms were already written against, so that ProgressWindow implements this interface without changing the body of any of its methods.

Only QString is used here, which belongs to QtCore. This header deliberately pulls in nothing from QtWidgets, so that code including it stays usable in a program that never creates a window.

Note: Implementations must tolerate being called from an analysis that runs to completion without ever calling Start() or Finish()

See also: ProgressWindow for the graphical implementation; AnalysisHost for how reporters are created and disposed of

Definition at line 29 of file progressreporter.h.

Constructor & Destructor Documentation

◆ ~ProgressReporter()

virtual ProgressReporter::~ProgressReporter ( )

virtualdefault

Member Function Documentation

◆ AppendPoint()

virtual void ProgressReporter::AppendPoint	(	const double &	x,
		const double &	y,
		int	chart = `0`
	)

pure virtual

Adds a point to one of the progress charts.

Parameters

x	Horizontal coordinate, typically an iteration or generation number
y	Vertical coordinate, typically a fitness or likelihood value
chart	Index of the chart to append to

Implemented in NullProgressReporter, and ProgressWindow.

Referenced by SourceSinkData::SolveLevenberg_Marquardt().

◆ ClearGraph()

virtual void ProgressReporter::ClearGraph ( int chart = 0 )

pure virtual

Discards the points accumulated in a chart.

Implemented in ProgressWindow, and NullProgressReporter.

Referenced by SourceSinkData::MCMC_Batch().

◆ Finish()

virtual void ProgressReporter::Finish ( )

inlinevirtual

Ends reporting.

Named Finish() for the same reason Start() is not called show(). Disposing of the reporter is the responsibility of the AnalysisHost that created it, not of this call.

Reimplemented in ProgressWindow.

Definition at line 50 of file progressreporter.h.
